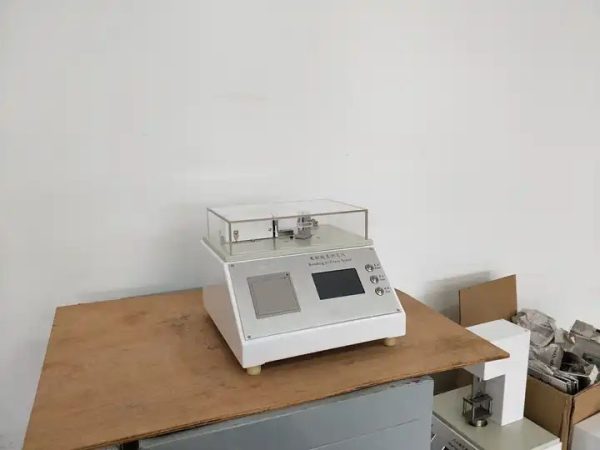

GA-T500 Paper Stiffness Tester

GA-T500 Bending Stiffness Tester is applied to measure he bending stiffness the quiescent state for paper and cardboard. It measures a material’s resistance to bending. This can be done either by measuring the force needed to bend a test piece to a predetermined angle or by measuring and determining the bending stiffness, which is an elastic property of the material.

ISO5628,ISO 2493,TAPPIT556,GB/T2679.3,GB/T23144,QB/T1051 GB ,GB/T22364

1. Adopt high precision load sensor, the error can be controlled within 1%, better than±2% standards.
2. Plastic cover can protect measurement head from damage, can preset angle, stainless steel clamp, long time use.
3. High resolution color touch screen operation system, Aluminum control panel, check or delete the testing records randomly. When it connected to a computer, it can automatically saves test results, also can display test curves of compression resistance and save.
4. Use standard weight or force measurement device for the accuracy of the calibration value for instrument, convenient user or measurement, the calibration department (third party) with standard weight force calibration value.
5. The instrument has three types (type A, type B, type C). The scope of its range can apply to all paper and cardboard stiffness test. Type A is often used in cardboard (such as white paper, gray paperboard, cattle paperboard, atbp.). Type B is often used in the paper, copy paper, kraft paper, laminating paper, atbp.). Type C is often used to low quantitative below 100 g / ㎡of the paper (such as carbon paper, thermal paper).
