Modelo:GA-FZ106

Yarn Winding Machine is used for winding various yarns onto standard blackboards to inspect and evaluate the appearance quality grade of the yarn.

Kategorya:

Paglalarawan

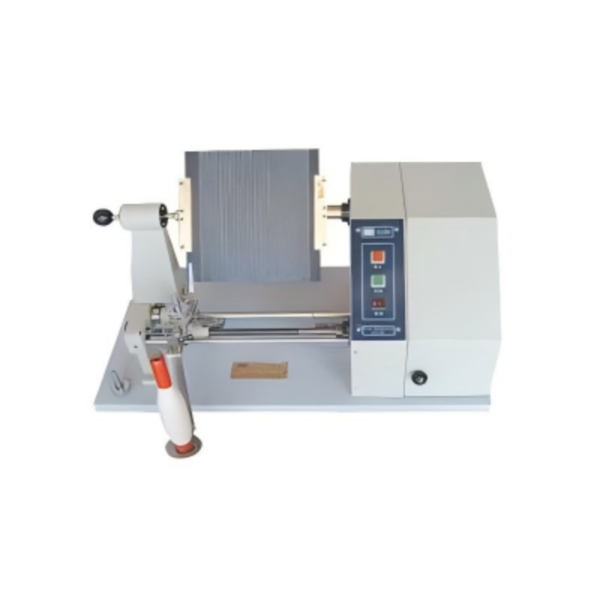

GA-FZ106 Yarn Winding Machine
Paglalapat:

Used for winding various yarns onto standard blackboards to inspect and evaluate the appearance quality grade of the yarn.

GA-FZ106 Yarn Winding Machine
Relevant Standards:

GB/T9996, GB/T398, GB/T5324, FZ/T32004, FZ/T32005, atbp.

GA-FZ106 Yarn Winding Machine
Mga Teknikal na Parameter:

1. Blackboard Specifications: 250×180mm / 250×220mm
2. Yarn Winding Density: 7, 9, 11, 13, 15, 19/cm, 20 threads/45mm
3. Pre-tension: 10-90Cn
4. Blackboard Rotation Speed: 200-400 r / min
5. Mga Dimensyon: L620×W370×H340mm
6. Timbang: 22Kg
7. Power Supply: AC220V, 40W
