Paglalarawan

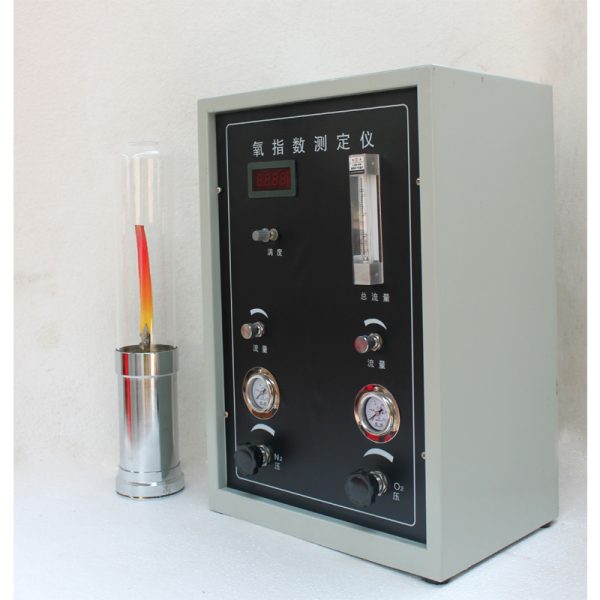

GA-9001-A Digital Oxygen Index Tester
Design standard:
GB/T 2406.2-2009 GB/T 2406.1-2008,ASTM D 2863, ISO 4589-2, NES 714 GB/T 5454 GB/T 10707 GB/T 8924-2005 GB/T 16581-1996 NB/SH/T 0815-2010 TB/T 2919-1998 IEC 61144-1992 ISO 15705-2002 ISO 4589-2-1996

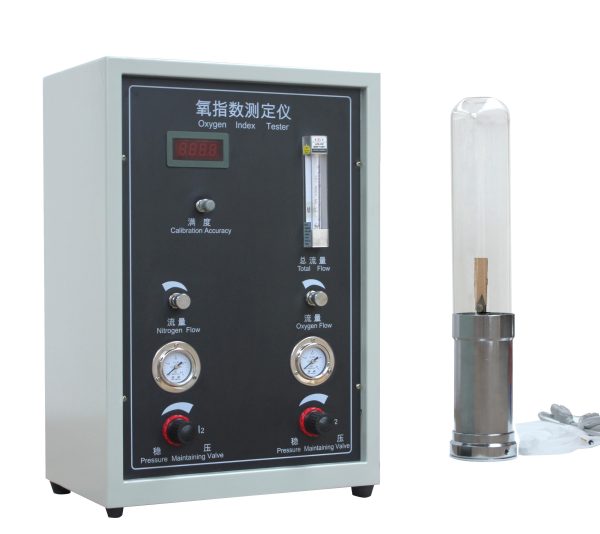

GA-9001-A Digital Oxygen Index Tester
Gamitin ang
The machine adopts imported SMC pneumatic components and steel frame structure to comprehensively test products with a certain speed and counting stroke, so as to assess product quality problems.
GA-9001-A Digital Oxygen Index Tester
Technical Specification
| Test station | 2group or 2 layer |
| Test stroke | 0-500mm |
| Test Speed | 5-10times/min |
| Timer | 0-999999999 Power off memory protection function, set the number of shutdown function |
| Action principle | Horizontal drawer movement |
| Kapangyarihan | AC220V 50HZ |
| Air pressure | 6kg |
| Out size | 1200*500*700mm |
| Timbang | 60KG |
GA-9001-A Digital Oxygen Index Tester
Scope of application:
It is suitable for the determination of the combustion performance of plastics, goma na, fiber, foam plastics, film and textile materials
GA-9001-A Digital Oxygen Index Tester
Pangunahing teknikal na mga parameter
- Using imported oxygen sensor, digital display oxygen concentration without calculation, more accurate and more accurate, saklaw 0-100%
- The built-in temperature controller to control the temperature, the control range: 23 ℃ ±2 ℃
- Digital resolution: 0.1%
- Katumpakan ng pagsukat: 0.4 grade na ba
- Flow regulation range: 0-10l /min (60-600l /h)
- Response time: < 5S
- High temperature resistant quartz glass tube, inner diameter 75 ㎜ height 480 mm or more
- Gas flow rate in combustion cylinder: 40mm ±2mm/s
- Pressure gauge accuracy 2.5, resolusyon: 0.01mpa
- The flowmeter: 1-15 l/min (60-900 l/H) is adjustable, test environment: the environment temperature: room temperature ~ 40 °C;, kamag-anak na kahalumigmigan: 70%;
- Input pressure: 0.2-0.3mpa
- Working pressure: nitrogen 0.1-0.15mpa oxygen 0.1-0.15mpa oxygen/nitrogen mixed gas inlet: including pressure regulator valve, flow control valve, gas filter and mixing chamber.
- The sample holder can be used for soft and hard plastics, textiles, fire doors, atbp
- Propane (butane) ignition system, flame length 5mm-60mm can be adjusted freely
- Gas: nitrogen and oxygen for industrial use with purity of > 99%;(user supplied).
- Mga kinakailangan sa kapangyarihan: AC220 (±10%) V, 50HZ
- Maximum working power: 50W
- Igniter: made of a metal, end diameter Φ 2 ±1 mm nozzle, can ignite sample in combustion tube, the flame length: 16 ±4 mm, the size is adjustable
- Self-supporting material sample holder: it can be fixed in the position of the axis of combustion cylinder and can hold the sample vertically
- Non-self-supporting material sample holder: two vertical edges of the sample can be fixed on the frame at the same time (optional for non-self-supporting materials such as textiles and films).
