Paglalarawan

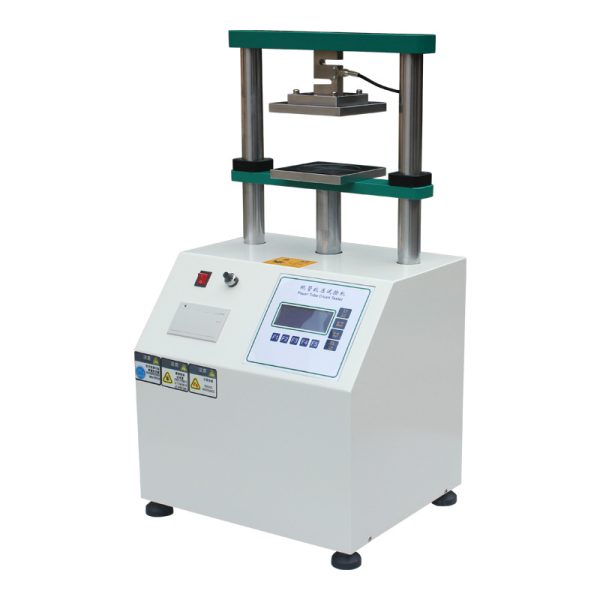

GA-8509 Paper Tube Pressure Tester
Panimula
Suitable for paper tubes with an outer diameter of 200mm, also known as paper tube pressure testing machine and paper tube compression testing machine, it is a basic instrument for testing the compression performance of paper tubes. It adopts high-precision sensor and high-speed processing chip design to ensure the sampling accuracy.
GA-8509 Paper Tube Pressure Tester
Mga tampok ng produkto:
1. After the completion of the test, the automatic return function can automatically determine the crushing force and automatically save the test data;

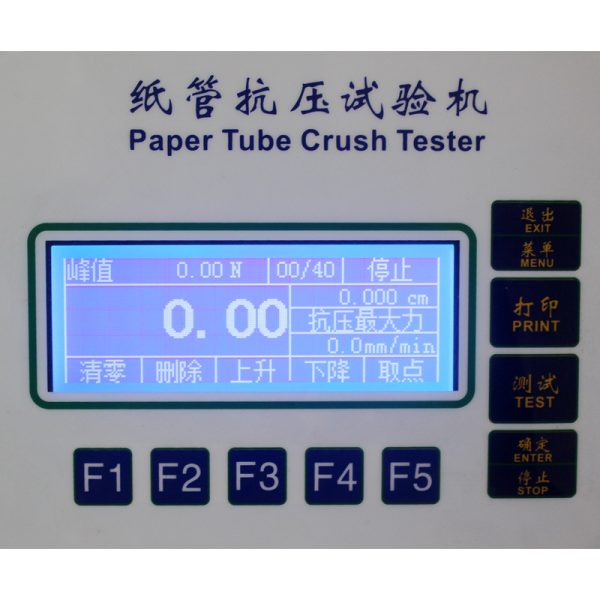

2. Adjustable speed, all Chinese LCD display operation interface, a variety of units to choose from;
3. Equipped with micro printer, can print test results directly.
GA-8509 Paper Tube Pressure Tester
Matugunan ang pamantayan:
BB/T 0032 Paper tube
ISO 11093-9 – Determination of paper and board cores – Bahagi 9: Determination of flat compression strength
GB/T 22906.9 Determination of paper cores – Bahagi 9: Determination of flat compression strength
GB/T 27591-2011 Paper bowl
GA-8509 Paper Tube Pressure Tester
Mga teknikal na tagapagpahiwatig:
Capacity selection: 1 T (500kg, opsyonal na)
Outer diameter of paper tube: 200 mm Test space: 200*200
Bilis ng pagsubok: 10 ~ 150 mm / min
Force resolution: 1/200000
Resolution ng display: 1 N
Accuracy level: Level 1
Displacement unit: mm, cm, in
Power units: kgf, gf, N, kN, lbf
Stress unit: MPa, kPa, kgf/cm2, lbf/in2
Control mode: microcomputer control (optional computer operating system)
Mode ng display: electronic LCD display (optional computer display)
Pag-andar ng software: Chinese and English language interchange
