GA-3808 Pull Off Adhesion Tester

BGD 537 Abrasion Resistance Tester for Touch Screen Coating BGD 537 Abrasion Resistance Tester for Touch Screen Coating
GA-X151 Microcomputer Controlled Gear Wear Testing Machine

Kategorya:

Paglalarawan

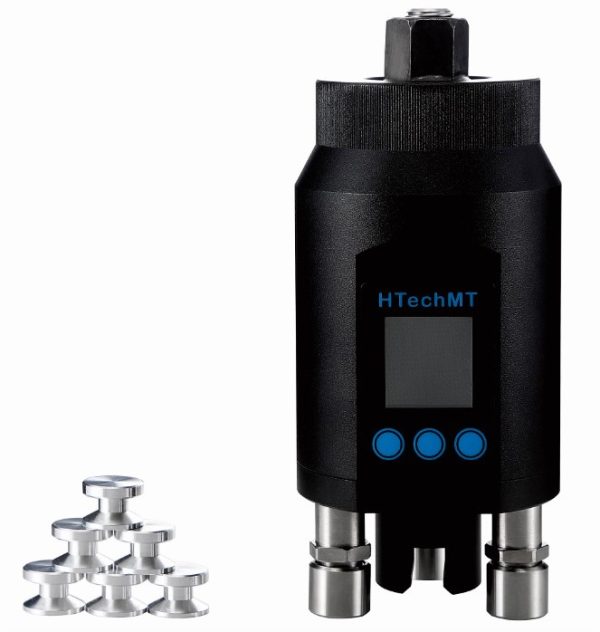

GA-3808 Pull Off Adhesion Tester

Execution standard:

ASTM D 4541, ISO 4624, ISO16276-1

Paglalarawan:

Test the adhesion of coating and substrate by applying a stator to the coating surface.



Mga Tampok:

– simpleng operasyon

– suitable for laboratory and field applications

– four stators are available

– the range can reach 60MPa, and the accuracy is 2% ng buong saklaw

– units: MPa,psi and bar

– sound alarm near the limit value

– rechargeable battery powered



GA-3808 Pull Off Adhesion Tester

Parameter

Modelo GA-3808-10 GA-3808-14 GA-3808-20 GA-3808-50
Measure range 10mm stator 14mm stator 20mm stator 50mm stator
2.5-60MPa 1.3-30 MPa 0.8-15 MPa 0.2-2.4 MPa
Katumpakan Full measure range ±2%
Sukat 86*153 mm
Battery 1pcs battery

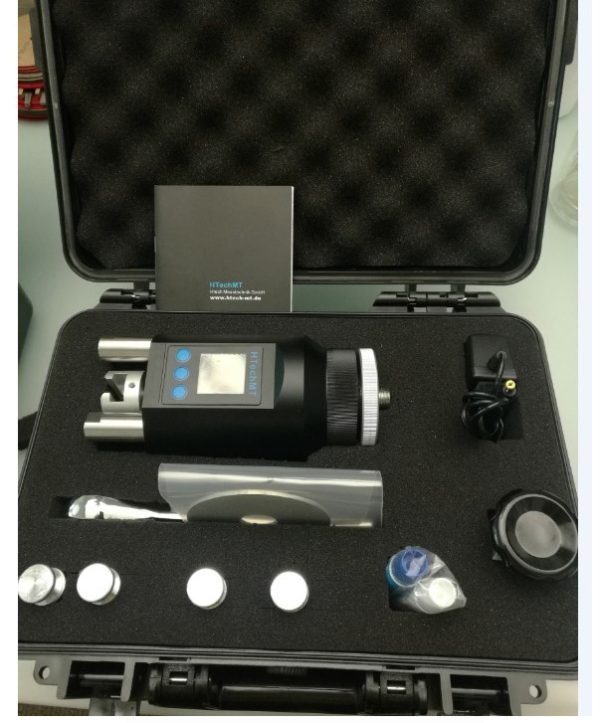

Pack list

AT200, glue, support ring, stator knife, packing box, instruction and certificate

At200-10/14/20 :20 stators of corresponding size

At200-50:8 50 mm diameter stators
