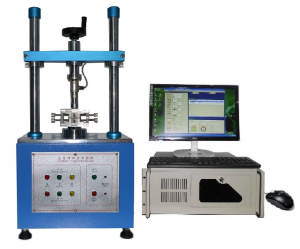

GA-3415 Computer Automatic Torque Testing Machine

Paglalarawan

Torque Testing Machine

Maikling pambungad:

GA-3415 computer automatic torque testing machine is suitable for all kinds of products related torque testing.NB shaft, mobile phone (torsion test of single shaft, torsion life test of finished product), LCD Monitor Torsion test and torsion life test of foot base and rotary switch. With Windows Chinese vision Window screen setting operation is simple.

Torque Testing Machine

Mga Tampok:

The machine is driven by servo motor to provide high precision torsion test.

◆ Test conditions are set by the computer screen, and can be stored.

◆ It can directly test the change of torque value at each Angle (torsion-angle curve change chart).

◆ Display torsion – Angle curve and torsion attenuation life curve at the same time.

◆ Can store and print graphics (torsion – Angle curve and torsion attenuation life curve, inspection report).

◆ The inspection report can be printed automatically, and can be converted to output or output directly through the network.

◆ The upper and lower limits of the test can be input, and the machine will stop automatically if it exceeds the specifications.

◆ Torque value can be set: positive torque, reverse torque, positive torque + reverse torque.

◆ Test heading direction: heading forward, heading forward + heading back. Reverse trip, reverse trip + return trip.

Forward turnaround + reverse turnaround + forward turnaround.

Torsion Angle curve:

◆ Can directly record the change of torque value at each Angle. (X axis represents Angle, Y axis represents torsion)

◆ Each measurement graph can be tracked by the cross vernier, and the corresponding torque and Angle value can be read, the minimum accuracy is 0.1 mga degree.

◆ The curve is automatically stored by the computer, can be enlarged and reduced at any time, a piece of paper can be arbitrarily specified to place N curves.

Scroll type graph display, can browse the graph arbitrarily.

Life curve:

◆ The header content of the report can be set freely.

◆ The maximum value, minimum value and average value of each curve can be displayed on the report.

◆ The specification line of the upper and lower limits of the test can be displayed on the report.

◆ Can be set to display multiple groups of life curves at the same time.

Simple operation of experimental condition setting:

◆ Chinese window screen setting operation is simple.

◆ Test conditions are set by the computer screen, and can be stored.

◆ By the drop down menu check set or directly input data. (Including the determination of strength type, determination of walking

Direction, load measurement range, Angle measurement range, trip origin location, trip origin detection,

Measurement speed, measurement times, pause time, each waiting position)

◆ Measurement items and specification setting: the upper and lower specification values and test results can be automatically determined as OK or NG.

Torque Testing Machine

Mga teknikal na parameter

Numero ng modelo	GA-3415
The inner distance between the two columns of the machine	240mm
Maximum test torque	10kgf·cm and 50kgf·cm are optional
Minimum display torque	1gf·cm, 10gf·cm
Minimum display Angle	0.1 degree
Maximum test Angle	No limit
Test speed range	60 — 15000 degrees /min
Drive the motor	Servo motor
External ruler inch	W420×D280×H980m
Machine weight	75kgf
Use an electric source	AC 220V
