GA-3344 Safety Shoe Compression Puncture Tester
- Paglalarawan
- Pagtatanong
Paglalarawan

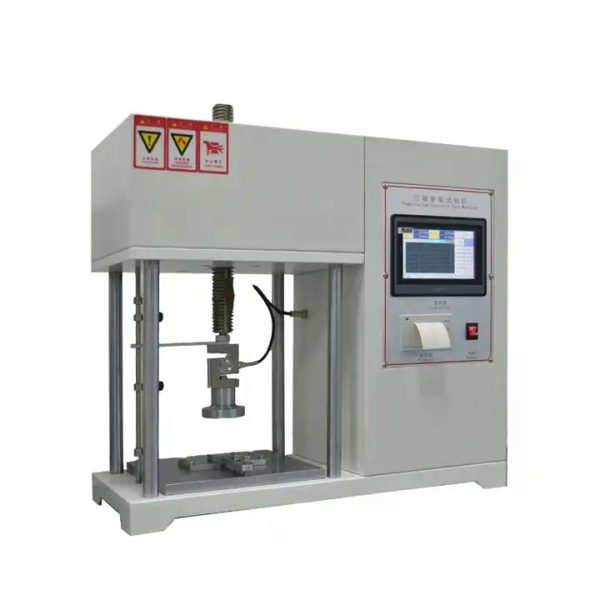

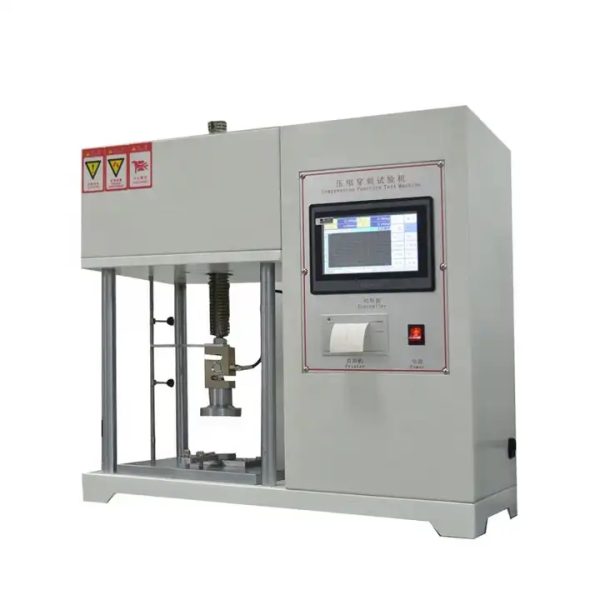

Shoe Compression Puncture Tester
Paglalapat:
* To determine the pressure strength of the safety shoe steel head and the durability of the sole.
* Suitable for all types of safety shoes, steel head compression and steel medium plate durability puncture test, to prevent the safety performance of shoes caused by accident when the operator is dressed in the workplace.
Corresponding standard:
EF-344, ANSI-241, LD50, ISO20344, GB/T20991-2007
EF-344, ANSI-241, LD50, ISO20344, GB/T20991-2007
Shoe Compression Puncture Tester
| Modelo | DZ-349 |
| Compression power | (EN)15±0.1KN,(ANSI)1000±50~10000±50lbs |
| Compression speed | (EN)5±2mm/min,(ANSI)50lbs/sec |
| Detecting instrument(Customer owned) | (EN)Gauge(ANSI)Probe(L)76.2±1.6mm |
| Plate hardness | (EN)60HRC |
| Pressure induction | Load Cell |
| Pressure display resolution | 1/10000(HY-2000Monitor) |
| Horsepower | 1/2HP |
| Dami ng | (82*58*71)cm |
| Timbang | About 148Kg |
