GA-1407-A Flexo Ink Proofer

Paglalarawan

GA-1407-A Flexo Ink Proofer

Panimula

Applicable objects: monochrome proofing (such as color matching, testing, atbp.)

Input power: 220V, 50/60Hz

Kapangyarihan: 400 w（UV-LED：500W，Mercury UV light：2000W）

Ink: dropper ink

Proofing material thickness: 0.01-2mm (bendable material)

Proofing material size: 170x210mm

Printing area: 120x148mm

Plate area: 150X 160mm

Plate thickness: DUPONT: 1.14mm thick flexible plate glue 0.38mm

Plate roller and screen roller pressure: adjustable by 2mm soil, with scale to show the pressure

Plate roller and press pressure: can be adjusted by 2mm soil, there is scale to show the pressure

Printing speed adjustable: 0-80 m/min

Ceramic roller specifications :(USA) 70x210mm

Number of ceramic roller lines: standard 600LPI (70-1200 lines can be customized),BCM:1.6-5.3

Suitable for: flexographic water – based, UV ink, lithography, letterpress or UV ink

Suitable proofing materials: paper, plastic film, non-woven cloth, napkin, gold and silver card paper, atbp

Mga Dimensyon (length x width x height) : 400x800x950mm

Instrument net weight: 130KG

UV fixing machine drying equipment optional

The instrument can be coated, solid color, dot pattern proofing

Blade pressure: pneumatic, pressure balance can be adjusted at both ends.The constant pressure design of the scraper is conducive to the repeatability of printing color and uniform standard.

GA-1407-A Flexo Ink Proofer

Unique features of the instrument:

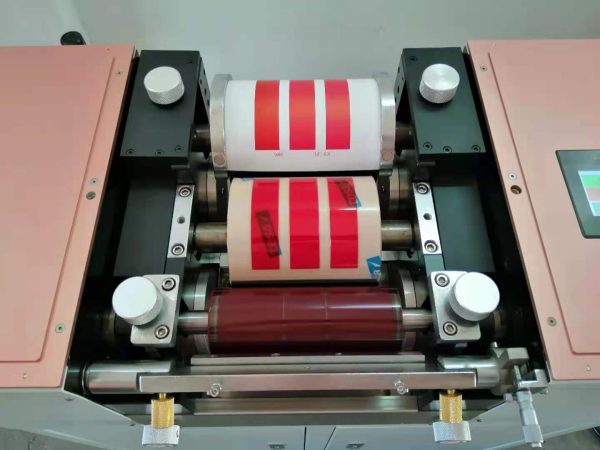

1. After the ceramic roller rotates the ink evenly, the printing material and the printing plate cylinder start and rotate synchronously for two weeks to complete the proofing work. The ceramic roller and the printing material cylinder operate synchronously with the printing plate cylinder to ensure the proofing quality.
2. Scraper, ceramic roller, plate drum, printing drum four structures can be individually adjusted around the pressure, flexible adjustment;
3. The screen roller and scraper are easy to disassemble and install
4. Large drum structure, printing material installation, plate installation and cleaning plate is simple and convenient.
