Descripción

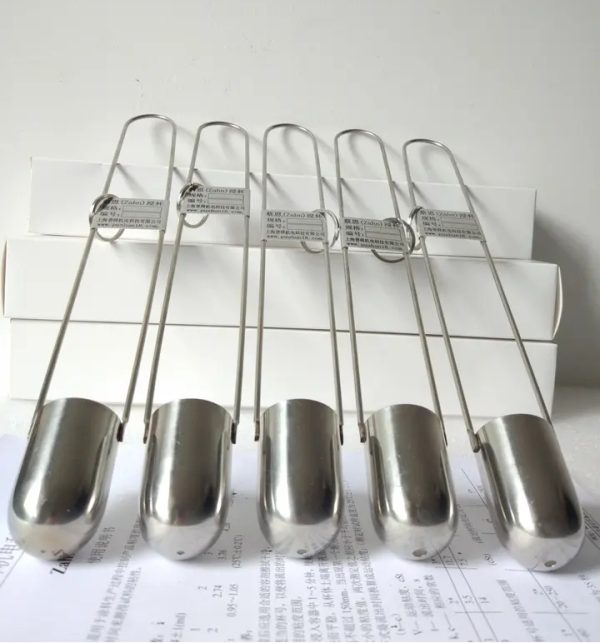

Copa de viscosidad Zahn
Breve introducción:
Zahn cups is manufactured in accordance with the relevant provisions of ASTM d4212-93 “standard test method for immersion viscosity cups” and in combination with the actual production.
An instrument made of stainless steel to facilitate rapid determination of liquid consistency in the field or during production.
It is then drained from the tap and the measured consistency is usually expressed as the number of seconds required to discharge, which can also be converted to the centistoke (cSt).
Copa de viscosidad Zahn
Descripción:
There are five different nozzle options, ranging from 5 to 1800cSt.
Nota: the use of a high precision stopwatch is required.
Copa de viscosidad Zahn
Especificación
| Cup body volume: | 44ml | ||||
| Cup body material: | acero inoxidable | ||||
| Cup No: | ZAHN 1# | ZAHN 2# | ZAHN 3# | ZAHN4# | ZAHN 5# |
| Diámetro del agujero:(milímetros) | Ø 1.93 | Ø 2.69 | Ø 3.86 | Ø 4.39 | Ø 5.41 |
| Rango de medida:(cst) | 5~60 | 20~250 | 100~800 | 200~1200 | 400~1800 |
|
Flow over time:(S)
|
35~80 | 20~80 | 20~80 | 20~80 | 20~80 |
| peso: | 0.14Kg | ||||
| Tamaño exterior: | 380×70×80mm(L×An×Al) | ||||
