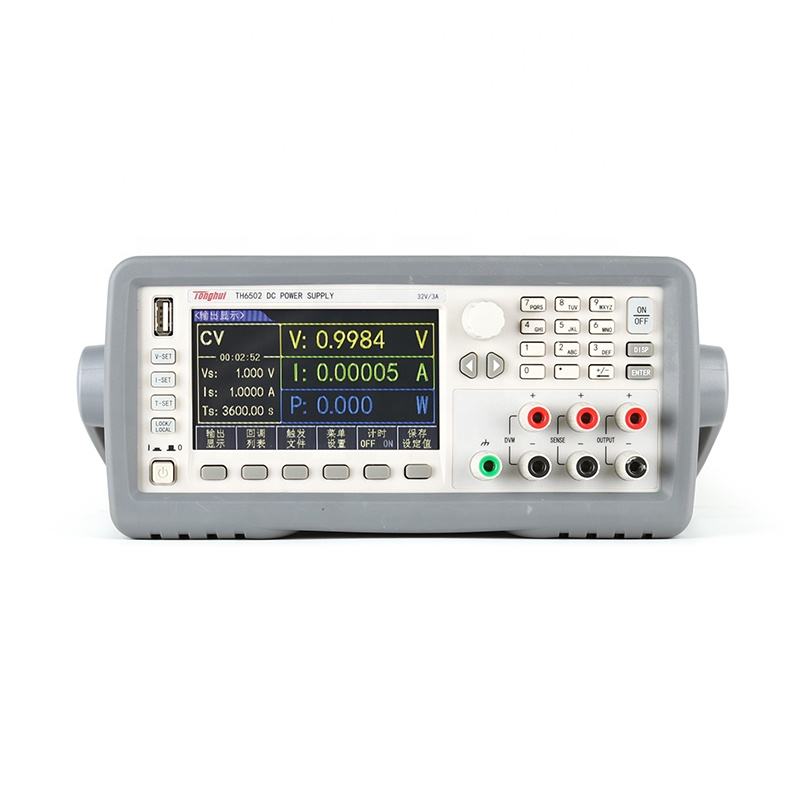

Tonghui TH6501 Programmable Linear DC Power Supply TH6502
- Descripción
- Consulta
Descripción
DC Power Supply
Características
24-bit color 4.3-inch color LCD display
LCD resolution 480*272
Numeric keypad operation
Low ripple and low noise
Intelligent fan control to save energy and reduce noise
Software monitoring via computer
Editable voltage and current output waveform with time
(resolution 1ms) (LBT mode)
The power output can be turned on and off by an external signal
The knob can be used to coarsely adjust and fine tune the
voltage and current values.
High accuracy and resolution: 0.1mV/0.01mA
Timing output time can be set (0.01-9999.99S)
Screen information can be stored in the USB flash drive
Chinese and English user interface
Flexible and convenient file operating system
Incorporado 5 1/2 digital milliohm meter
Actualización automática del software de operación de instrumentos a través del host USB
Interfaz de controlador para operaciones en línea
RS232, PUERTO USB, Dispositivo USB, GPIB can easily realize
the data communication with PC and remote control of the
instrumento
Comes with hardware OVP, OCP protection
(OCP is software protection)
Front panel and rear panel with output and sampling terminals,
voltage and resistance measuring terminal
Support standard SCPI and MODBUS communication protocols
DC Power Supply
Solicitud
R & D and design verification common test
Production line table routine testing and maintenance
Automated device integration testing
DC Power Supply
Parámetro técnico
| Modelo | TH6501 | TH6502 | TH6503 | TH6511 | TH6512 | TH6513 | |
| Rated Output | Voltaje | 0-20V | 0-32V | 0-72V | 0-20V | 0-32V | 0-72V |
| Actual | 0-5A | 0-3A | 0-1.5A | 0-10A | 0-6A | 0-3A | |
| Fuerza | 100W. | 96W. | 108W. | 200W. | 192W. | 216W. | |
| Load Regulation | Voltaje | ≤0.01%+2mV | |||||
| Actual | ≤0.05%+1.5mA | ||||||
| Power Regulation | Voltaje | ≤0.01%+1mV | |||||
| Actual | ≤0.05%+1mA | ||||||
| Set Value Resolution | Voltaje | 1mV | |||||
| Actual | 0.1mamá | ||||||
| Read-back Resolution | Voltaje | 0.1mV | |||||
| Actual | 0.01mamá | ||||||
| Year Set Accuracy (25℃ ± 5 ℃) | Voltaje | ≤0.03%+3mV | |||||
| Actual | ≤0.05%+2mA | ||||||
| Year Read-back Accuracy(25℃ ± 5 ℃) | Voltaje | ≤0.02%+3mV | |||||
| Actual | ≤0.05%+2mA | ≤0.05%+2.5mA | |||||
| Ripple and Noise(20Hz-20MHz) | Differential Mode Voltage | ≤3mVp-p and 1mVrms | ≤4mVp-p and 1mVrms | ||||
| Differential Mode Current | <3mArms | <4mArms | |||||
| Dynamic Recovery Time (50%-100% LOAD)Restore Time within 75mv | <200a nosotros | ||||||
| Rise Time | 10%-90% | <20EM | |||||
| Fall Time | 90%-10% | <200EM | <250EM | <150EM | <200EM | <250EM | <150EM |
| Overvoltage Protection | Rango (Typical) | 1-19V | 1-31V | 1-71V | 1-19V | 1-31V | 1-71V |
| Exactitud (typical) | ± (set value *0.5%+0.5V) | ||||||
| Response Time (typical) | <10EM | ||||||
| DVM(corriente continua) | Display Value Accuracy | ±0.02%+10mv | |||||
| Resolución de pantalla | 0.1mv | ||||||
| Input Differential Mode Voltage Range | 0-40Vpk | ||||||
| Input Common Mode Voltage Range | 0-30Vpk | ||||||
