TAG6000 Phaser nuclear de alto voltaje
Introducción del producto

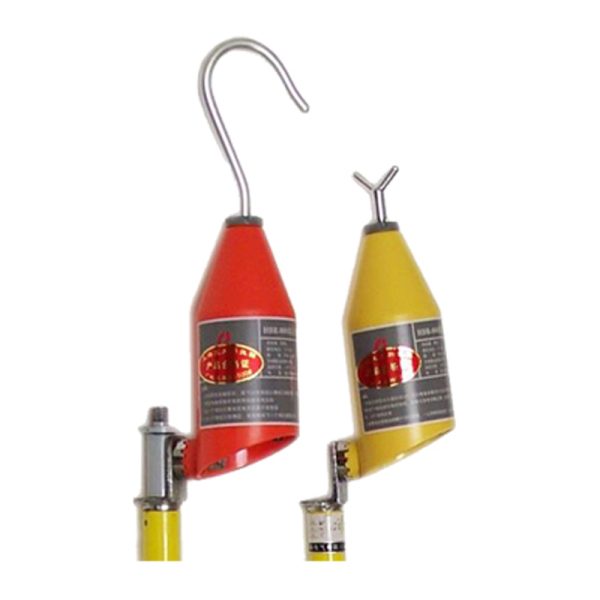

TAG6000 digital wireless high voltage nuclear phase detector is mainly used for phase sequence verification of high voltage electrical equipment and lines. Using wireless transmission technology, it can be used through the wall, breaking through the security risks and limitations of conventional instruments. The instrument consists of a transmitter, a receiver and an insulating rod. After the signal is received, the two signals are compared, and two identical starting waveforms are displayed when the phase is the same, and there are text, light and sound prompts.
TAG6000 Phaser nuclear de alto voltaje
Caracteristicas de producto
This product has passed the “power industry power safety equipment quality supervision, Inspection and Test Center” appraisal
1, receiving display: ángulo de fase, frecuencia, voltage waveform
2. Come with rechargeable battery
3, patented products, easy to maintain
4, high signal acquisition sensitivity, good selectivity
5, high-frequency transmission, strong adaptability, can pass through the partition, wall
6, wireless air transmission distance up to 20m
7, fácil de operar, seguro y confiable
8. On-site live calibration
9, voltage level 400v ~ 110Kv
10, fuerte, good sealing
11, peso ligero, fácil de cargar
TAG6000 Phaser nuclear de alto voltaje
Parametros del producto
1, voltage level 6Kv ~ 35Kv, 110Kv
2, wireless transmission distance 20m (can be customized according to different needs, the longest distance of 50 metros)
3, phase difference measurement accuracy ±3 degrees
4. Working frequency 50Hz
5, power 9V battery
6, the ambient temperature -20℃ ~ +50℃
7, ambient humidity all weather
8, frequency accuracy ±1Hz
9, phase Angle range phase Angle offset less than ±30° is in phase
10. Phase Angle deviation greater than ±30° is out of phase
11, check automatic check, can also be checked on the live wire
12, weight transmitter 0.52Kg, receiver 0.2Kg
13, size 76×200mm
14. Packing aluminum alloy boxes
