Descripción

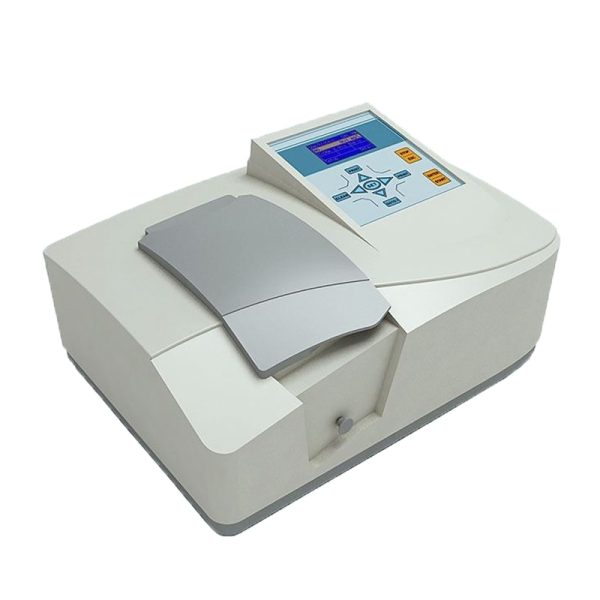

RU-1200 UV-vis Spectrophotometer
Introducción
The function is practical and easy to operate. The main machine is equipped with a large screen dot-matrix LCD display, which can be used for photometric measurement and quantitative testing, and the standard curve map can be displayed directly. The PC quantitative analysis software is selected to enhance the quantitative test function and increase the functions of time scanning, data processing and report printing. It is widely used in teaching and daily analysis.
RU-1200 UV-vis Spectrophotometer
Característica
◆ Photometric measurement: transmittance T%, absorbance Abs, energy E
◆ Quantitative test: concentration C(coefficient method, standard curve method)
◆ Time scanning (Dynamics) : PC online function
◆ System application: dark current correction, wavelength correction, etc.
◆ Data processing, report printing, etc.
RU-1200 UV-vis Spectrophotometer
Instrument characteristics
◆ Automatic wavelength calibration, automatic dark current and blank correction, automatic switching of light source and filter
◆ Large sample room, can accommodate 5-100mm color plate, support a variety of test required accessories
◆ High quality optical and electronic components ensure high precision and low stray light
◆ Dot matrix LCD display, touch film button, interfaz amigable, operación fácil
◆ Long life environmental protection flange seat type deuterium lamp, light change without optical debugging
◆ Map and data can be saved in real time, and can be maintained with power off, and can be printed and exported to PC
◆ Solid base plate and optical support, imported key components, durable
◆ Optional PC quantitative analysis software, online operation is more convenient, expand the ability of data processing and storage
RU-1200 UV-vis Spectrophotometer
Parámetro
|
Modelo |
RU-1200 |
|
spectral bandwidth |
4Nuevo Méjico(optional 2nm) |
|
cobertura de longitud de onda |
190~1100nm |
|
optical system |
Single beam path, holographic diffraction grating |
|
precisión de la longitud de onda |
±0.8nm |
|
repetibilidad de longitud de onda |
≤0.2nm |
|
Wavelength setting |
Automatic wavelength setting, wavelength resolution 0.1nm |
|
Photometric range |
0~200%T, -0.3~3A, 0~9999C, 0~9999F |
|
Photometric accuracy |
±0.002A (0~0.5A), ±0.004A (0.5~1A), ±0.3%T (0~100%T) |
|
Photometric repeatability |
≤0.001A (0~0.5A), ≤0.002A (0.5~1A), ≤0.2%T (0~100%T) |
|
stray light |
≤0.1%T (220/360Nuevo Méjico) |
|
Baseline drift |
≤0.002A/h (500Nuevo Méjico,0A) |
|
ruido |
±0.2%T(0%T line)；±0.5%T(100%T line))；±0.001A (500Nuevo Méjico) |
|
Baseline flatness |
±0.003A |
|
velocidad de escaneo |
Alto, medium and low speed three adjustable |
|
detector |
Imported silicon photodiode |
|
fuente de luz |
Imported long life tungsten lamp and deuterium lamp (no optical debugging) |
|
mostrar |
3 pulgada 128*64 dot matrix LCD display |
|
teclado |
Tap the film button |
|
interfaz de datos |
USB port |
|
printout |
microimpresora; PC Printer (en línea) |
|
diseño de software para computadora |
PC Quantitative Analysis Software (opcional) |
|
fuente de alimentación |
AC90-250V, 50/60Hz |
|
dimensión límite |
430x320x195mm |
|
peso |
12kg |
