Microcomputer relay protection tester

Descripción

probador de protección de relé

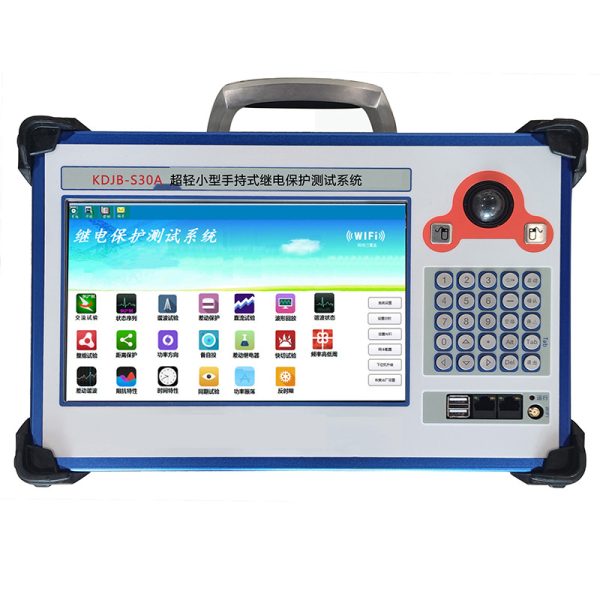

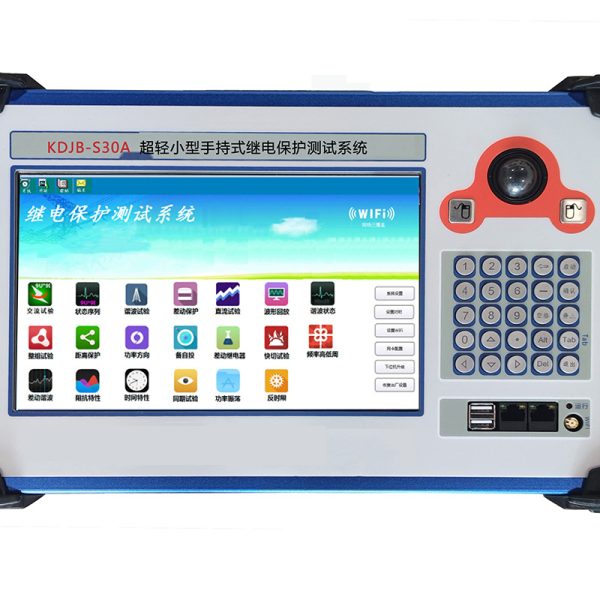

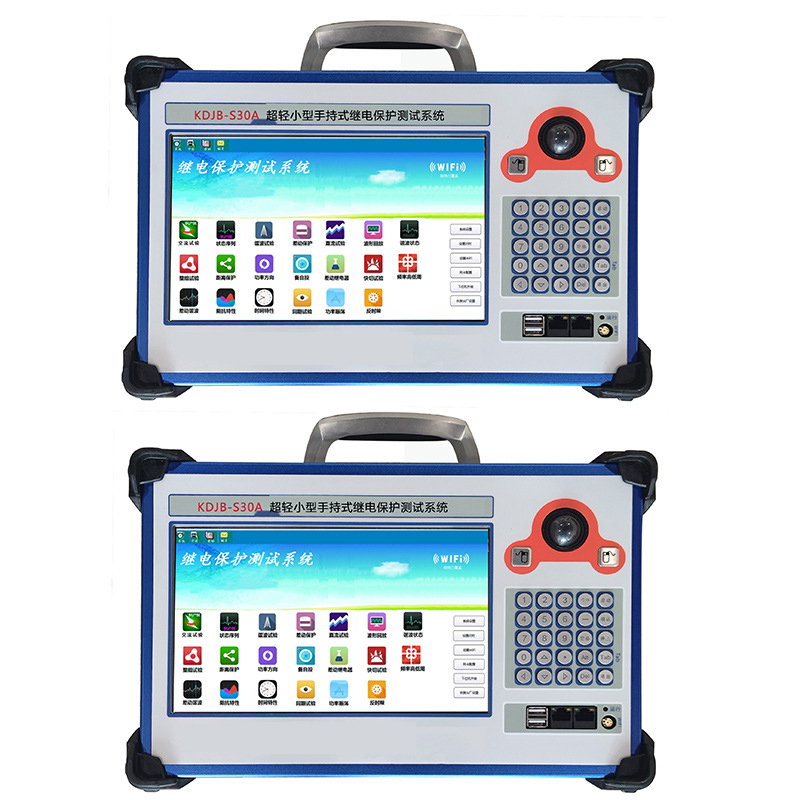

Light and small series handheld relay protection tester is a lightweight and portable handheld relay protection tester newly designed with new technology and electronic technology achievements. The function configuration and operation mode of this series of relay is the same as that of traditional large-scale relay, but it is small in size, light in weight and easy to carry, which reduces the work burden of field personnel and improves the field work efficiency.

Handheld series relay equipment includes S10 single-phase current three-phase voltage type, S30 three-phase current four-phase voltage standard type, S60 six-phase current six-phase voltage standard type

probador de protección de relé

Características técnicas
 Small relay device, slightly larger than A4 size, small and easy to carry.
 Lightweight relay device, weighing only 7.6kg, can be hand-held.
 Standard 4 Voltaje, 3 salida de corriente, phase voltage 120V, phase current 10A.

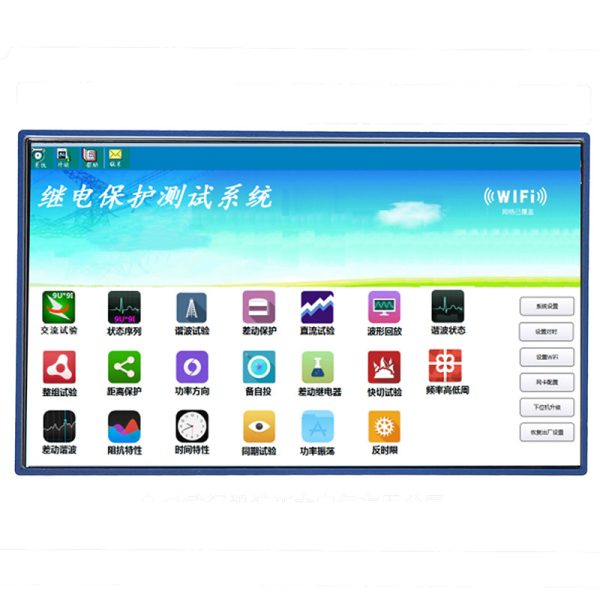

Windows operating system, 10 “large color screen, traditional test software, simple and smooth operation.
 Dual operation mode, single machine operation, external PC or WiFi operation.
 New high-fidelity linear power amplifier with output accuracy up to 0.1%.
 Highly integrated modular structure, good EMC performance, alta confiabilidad.
 Perfect and reliable self-protection function.
