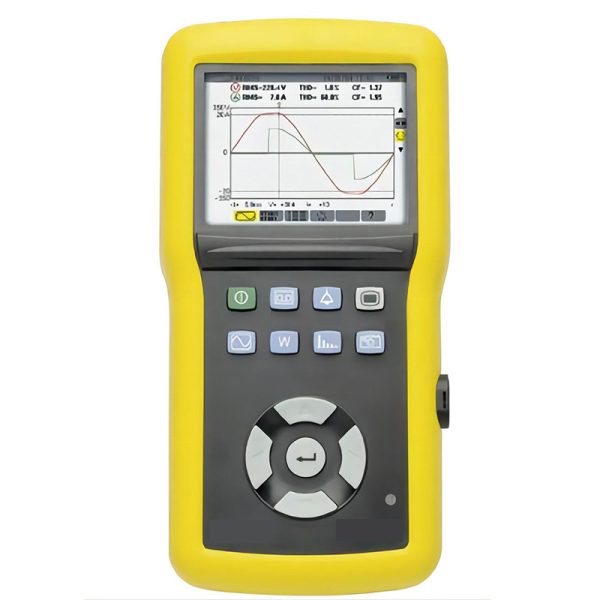

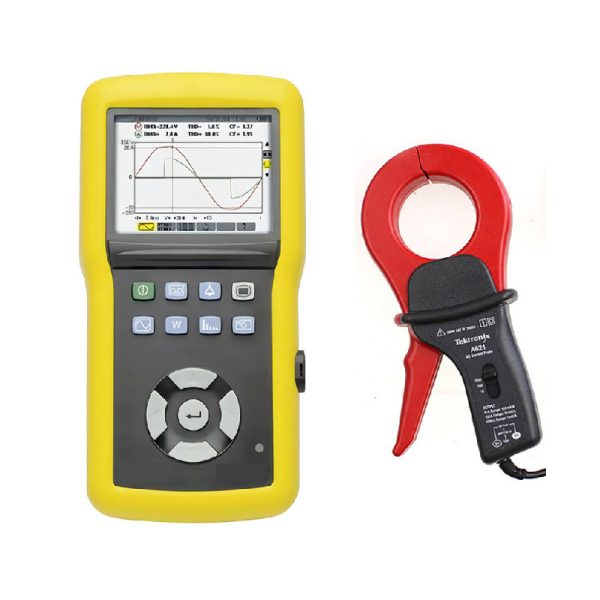

KDZD300B Cable leakage current tester

Cable outer sheath grounding current tester (diagnóstico) conform to the state grid corporation on the basis of purchasing equipment technical parameters requirements, main operation condition of 380 v – 220 – kv high, medium and low voltage power cable outer sheath grounding current accurately test.

1. Automatic shift 0.1MA~200A during measurement

2, the maximum mouth 53 MM, suitable for all kinds of cable testing

3, with self-test function, automatic protection function, over current automatic prompt and return to zero.

4, La velocidad de prueba es rápida, the sampling rate is fast, acerca de 2 veces por segundo, alta precisión, buena repetibilidad, fuerte capacidad antiinterferencia.

5, large screen liquid crystal display, true color liquid crystal display, real-time display of measurement data

6, through the expansion interface for data communication, transmisión de datos inalámbrico, with RS232 interface, interfaz USB

7, 200 sets of data storage, built-in high-precision real-time clock function: date and time calibration;

8, the instrument is small, peso ligero, fácil de cargar.

Current range	0-30A(over range automatic protection)
Current resolution	1MA
Measurement bandwidth	DC-20KHZ
Safety standard	IEC61010-1CATIll, 300VIEC61010-2-032
Influence of external magnetic field 15MM 100A	maximum AC 10MA
producción	AC/DC 200MV reading 200
