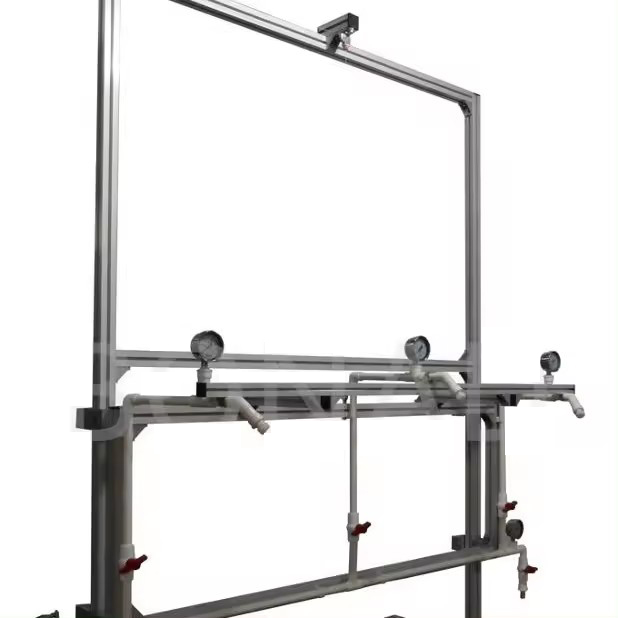

Equipo de prueba de pulverización GA-R6

Especificación:

Dimensión: 1500*800*2000milímetros (L*W*H), Adjustable height from 1000-2000mm
Spray head shelf: Free up and down moving
Shelf material: Industrial alumina profile, equipped universal wheels with break function

4 imported UL nozzles, each with high precision pressure gauge
Distance of crossed water from nozzle to the ground is 0-1400mm (ajustable)
Independent controller, fácil de operar

This test equipment is for IP test (UL Standard), Durante la prueba, the water should be constant and stable. Water flow rate shall
be 10L/min±5%, the pressure shall be 50~150kpa.

Spray test equipment

Parámetro principal:
1. Agua: Use 50~150kpa clean water
2. Water flow rate: 10L/min±5%
3. Spray nozzle standard: UL60507-38.2
4. Pressure gauge range: 0~0.25mpa
5. Precision pressure gauge: 4piezas
6. Booster water pump, flow meter, válvula solenoide, fliter
