Descripción

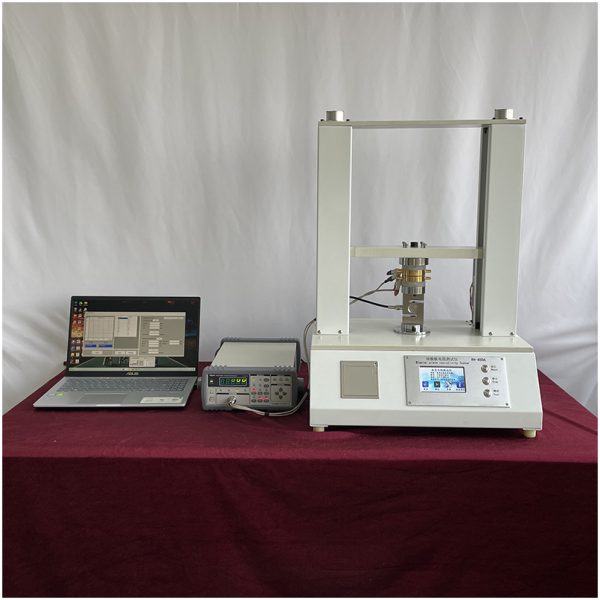

GA-450A Vertical Resistivity Tester
Introducción
The GA-450A Vertical resistivity tester is used to measure the vertical resistivity and plane resistance of fuel cell carbon paper, bipolar plates or other materials.
Cumplir con el estándar:
GB/T20042.7 – Proton exchange membrane fuel cells – Parte 7: Test method for characteristics of carbon paper
GB/T20042.6 Proton exchange membrane fuel cells – Parte 6: Bipolar plate characteristic test method
NBT 42082-2016 all-vanadium flow battery electrode test method
NB_T42007-2013 Test method for bipolar plates for all-vanadium flow batteries
T/CEEIA 577-2022 Electrode materials for iron-chromium flow batteries – Technical requirements and test methods
Rango de medición: (50 ~ 10000)norte, (0.05~4MPa), 1μΩ-20kΩ
Pressure resolution: 0.1norte
Pressure error: &es; Plus or minus 0.5%
Pressure Sensor: HBM (Germany)
Resistance resolution: 1mΩ, 0.001mΩ
Resistance accuracy: 0.1%
Upper and lower platen parallelism: &es; El 0.025 milímetros
Maximum distance between upper and lower pressure plates: 50milímetros

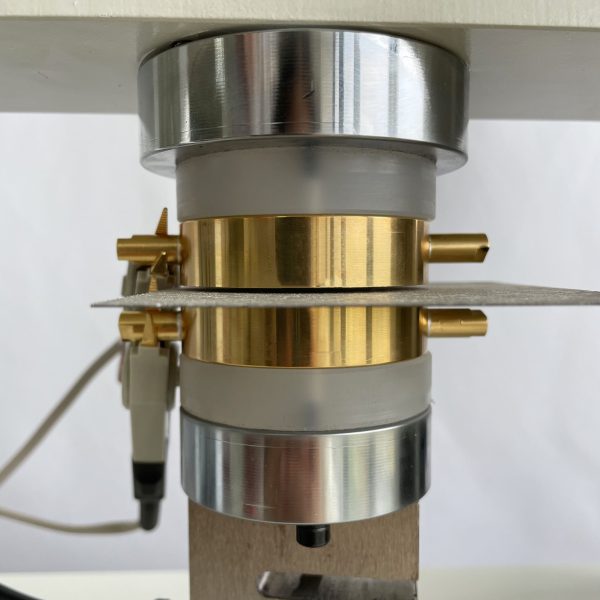

Upper clamping plate: Area 25cm² round, Φ80 mm(area 50.3cm²) (opcional)
Bottom plate: Area 25cm² round, Φ80 mm(area 50.3cm²) (opcional)
Dimensiones: 330×350×510mm
Mass: 57kg
Fuente de alimentación: AC110-240V, 50Hz
Connect to computer (estándar) : Equipped with computer software, RS232, interfaz USB, Bluetooth wireless connection
Interfaz hombre-máquina: touch screen display in Chinese and English
Características del producto:
◆ Germany HBM high precision force sensor, factory accuracy control at &es; 0.5%, mejor que el estándar ISO de ±1%.
◆ Automatic test, can be connected to the computer to synchronize the data to the computer software, automatically generate reports and graphs.
◆ Precision ball screw drive, panel de aleación de aluminio, high quality copper gold-plated upper and lower pressure plate and reasonable design, ensure the instrument durable. Our professional design and programming team can also upgrade the instrument.
◆ Touch screen Chinese display, operación amigable con la interfaz hombre-máquina. Complete the test automatically, with the test data statistical processing function, salida de microimpresora, can also be connected to the computer operation. When connected to the computer, in addition to automatically storing the results, the pressure-resistance curve can be displayed and saved.
◆ High performance stepper motor and Silicon Labs high performance chip control ensure accurate transmission, fast and efficient testing.
◆ The calibration procedure is specially set inside the instrument, which is convenient for the measurement and calibration department (tercero) to calibrate the instrument. When calibrating, enter the calibration test program, place the standard sensor between the upper and lower pressure plates, and the indication error can be easily calibrated.
