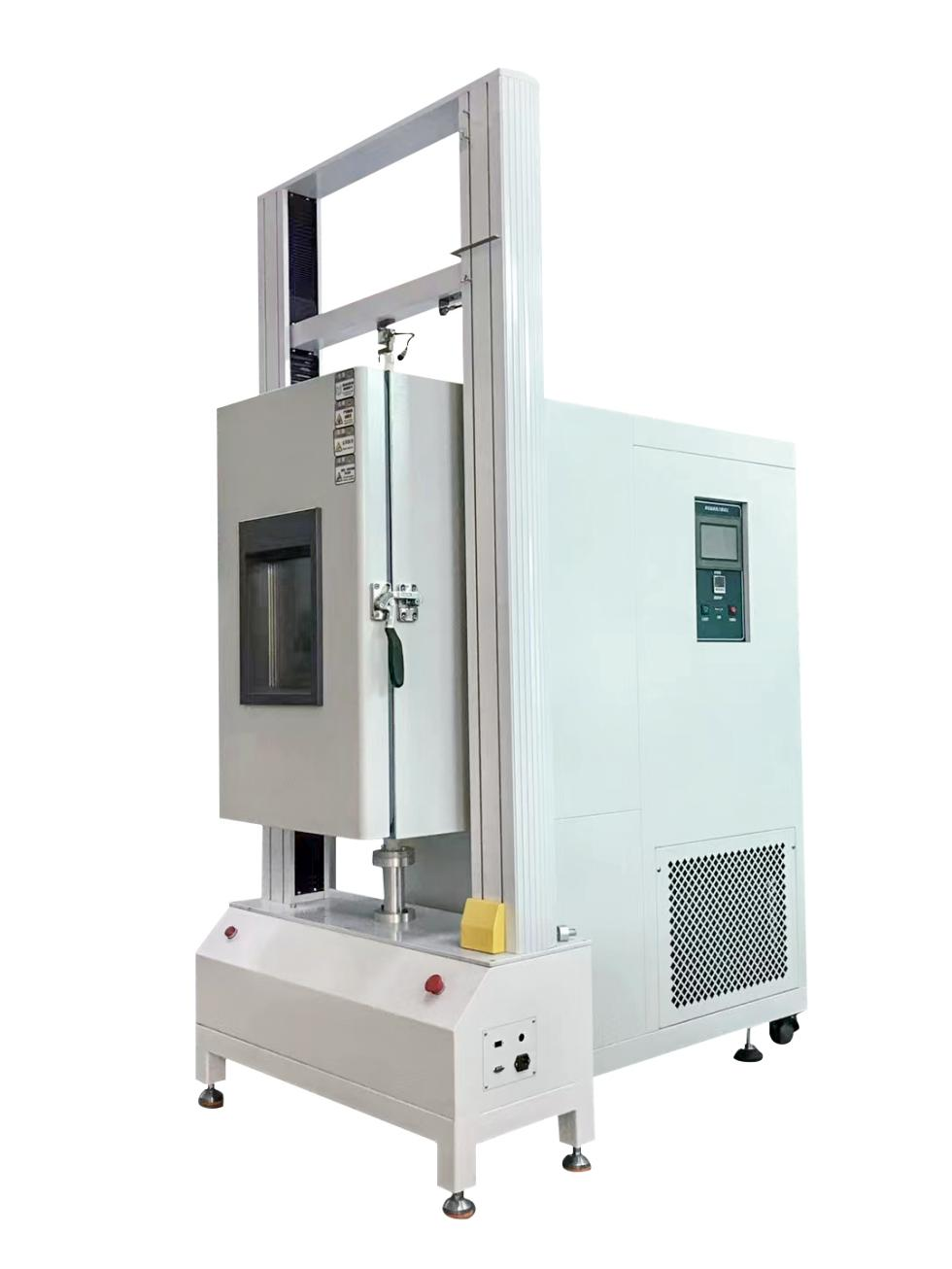

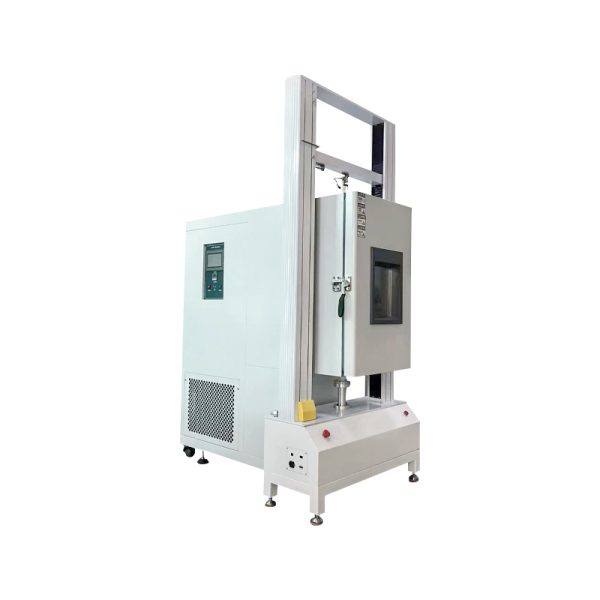

GA-2000S Tensile Testing Machine

Descripción

Máquina de prueba de tracción

I.Main functions

This machine is suitable for rubber, tire, hose, cinta, sole, el plastico, película, acrílico, FRP, abdominales, EVA, PU, aluminum-plastic pipe, composite material, waterproof material, fibra, textil, Alambre y cable, papel, gold foil, cinta, silk, spring, madera, medical packaging materials, tape and other stretching, compresión, desgarrando, pelar (90 degrees and 180 degrees Can) and other mechanical properties test and analysis.

This machine is a new type of material testing machine combined with electronic technology and mechanical transmission, the load, deformation, displacement measurement and control has a high accuracy and sensitivity, the series of models using a single space structure, test space in the next space, mainly suitable for test load less than 5kN metal, non-metal material test, with stress, strain, displacement control mode. The maximum force, resistencia a la tracción, bending strength, resistencia a la compresión, módulo elástico, elongation at break, yield strength and other parameters can be calculated.

Máquina de prueba de tracción

II.Introduction of control software

• Lenguaje del sistema operativo de software: Simplified Chinese/English.
• unidad de fuerza: norte, kn, kgf, LBF, length unit: milímetros, cm, en se puede convertir libremente;
• Automatic return to zero: the measuring system will automatically return to zero when the computer receives the test start instruction;
• Modo de visualización: data and curve dynamic display with the test process;
• Result reproduction: the test results can be accessed at will, and the data curve can be re-analyzed;
• Result comparison: Multiple test characteristic curves can be superposition, reproduced, enlarged and presented in different colors for analysis and comparison of a group of samples;
• Emergency stop: equipped with emergency stop switch, used to cut off the power supply of the machine in emergency;
• Modo de control:
• Computer software to set speed, set load break (rupture), tiempo de ejecución y otros métodos de control

u ·automatically determines material fracture, aplastante, etc., and automatically stops, and can be set to automatically return

• Type of curve:

u ·load-displacement, tiempo de carga, desplazamiento.

u ·stress-strain, tiempo de tensión, tiempo de estrés.

u ·Las coordenadas verticales y horizontales de la curva se pueden establecer arbitrariamente.

• Available test information:

u ·Fuerza máxima, fuerza mínima, breaking value, resistencia al rendimiento superior e inferior, resistencia a la tracción, resistencia a la compresión, módulo elástico, alargamiento, máximo, valor mínimo, average value of stripping interval, etc.. With overload, sobrecorriente, sobretensión, subtensión, velocidad, accidente cerebrovascular y otra protección múltiple.

u ·The data results are exported in the crystal report format currently accepted by the national standard.

Máquina de prueba de tracción

III.Parámetro técnico

Capacity selection	KN 10KN 20KN Optional, American brand high precision load unit
Precision class	Nivel 0.5
Effective force measurement range	0.4％～ 100 ％
accuracy of force measurement	Dentro de ± 0.5% of the indicated value
Testing machine resolution	The maximum load is 1/± 250,000 yardas, the internal and external files are not divided, and the whole resolution is unchanged
Load sensor	Configuracion basica: Tension and pressure sensor (carga máxima)
Ancho de prueba efectivo	400milímetros
Effective stretching space	More than 1400mm (without fixture) (more than 500mm inside the box)
Rango de velocidad de prueba	0～ 500 mm/min
Displacement measurement accuracy	Dentro de ± 0.5% of the indicated value
Test bench safety device	Protección de límite electrónico
Test bench return function	Opciones manuales o automáticas, after the end of the test automatically or manually return to the initial position of the test
Overload protection	Encima 10% of the maximum load, the machine automatically protects
Fixture configuration	Stripping fixture set
Main engine size	800×500×2500mm
Electric machine	220V±10% 0.4KW Japan Tama River servo motor
Driving mechanism	High precision ball screw
Main engine weight	(Acerca de) 460 Kg
