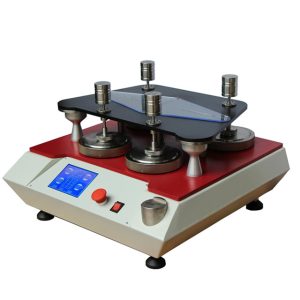

YG401E-4 Martindale Abrasion And Pilling Tester

Beschreibung

Martindale Abrasion And Pilling Tester

Prüfstandard

Abrasion Tests

ASTM D4966 Standard Test Method for Abrasion Resistance of Textile Fabrics (Martindale Abrasion Tester Method)

ISO 12947-1 Textiles — Determination of the abrasion resistance of fabrics by the Martindale method

BS 2543,BS 3424-24,BS 5690,BS 8428,ISO 17704,ISO 5470-2,IWTO 40,M&S P19,Next 18

SFS 4328,SN 198529,TWC 112,Volvo 1024,7122

Pilling Tests:

ASTM D4970 Slandard Test Method for Pilling Resistane and Other Related Surace Chanoes of Textie Fabrics

MartindaleTester IsO12945-2 Texties–Determination of fabric propensity to surace fuzzing and to piing–Part2:Modifed Martindale Method M&S P17,M&S P18C,Next TM26,SN 198525,Woolmark TM196

Martindale Abrasion And Pilling Tester

Usage

To determine the abrasion and pilling resistance of all kinds of textile structures.

Martindale Abrasion And Pilling Tester

Einführung

The Equipment is designed to subject specimen under a controlled amount of Rubbing at comparatively Low Pressure and in continuously Changing Directions to ensure that all Surface Fibers on the specimen are flexed in order to access the Resistance of fabrics to Abrasion.Under this test, the circular specimen of fabric are rubbed against a standard Abradant,under a known pressure and the resistance to abrasion is determined by the Number of Rubs to Break a yarn or by the Loss of Mass of the or specimen.

The equipment can accommodate up to 4 samples simultaneously.Each one is mounted separately in the specially designed specimen holder.The specimens lighter than 500 g/m² are backed with standard polyurethane foam.The abradant material (standard felt & abradant fabric),against which the specimen is rubbed, is clamped tightly over the abrading platform to prevent possible metal-to-metal contact.

The path traced by the test specimen over the abradant is known as Lissajous figure. It changes from a Circle to gradually narrowing Ellipses,until it becomes a straight line, from which progressively widening ellipses develop,in a diagonally opposite direction, before the pattern is repeated.This continuously changing movement ensures that the surface fibers of the specimen are flexed in every direction.The equipment is also suitable for performing Pilling Test,for which only stroke of top moving plate has to reduce from 60.5mm to 24 mm. The Degree of Pilling is assessed against standard photographs.

Smith Barney Inc. are now able to offer a technically advanced machine that is easy to use and inexpensive to own.

Test Procedure

According to the international standards, the fabric samples,being in contact with a disc of the same fabric(for pilling analysis following some specific norms)or an abradant fabric,undergo preset rubbing cycles at a given pressure,making the well-known Lissajous figure.

The wearing test ends when the operator notices the breakage of the first two yarns of the fabric structure.The pilling test ends with the analysis of the pilling effect on the sample surface after a preset number of turns.The evaluation of the results is made by comparison with the reference standard photographs.
