Beschreibung

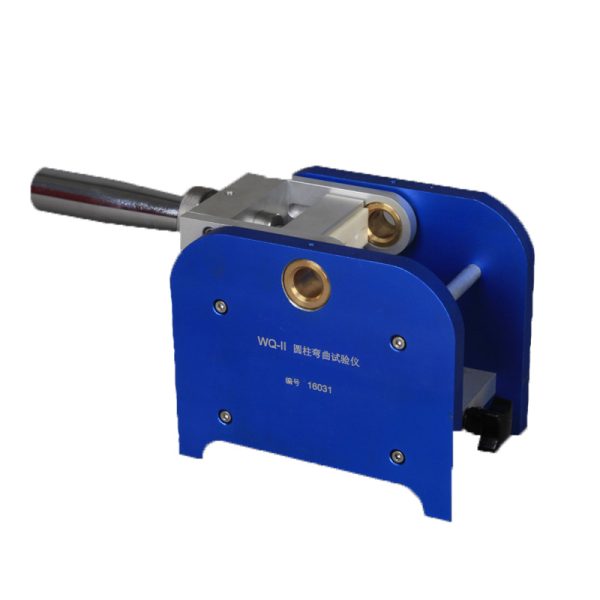

WQ-II Cylindrical Bending Tester
Überblick:
The type WQ- II cylindrical bending tester is used to test the cracking resistance and stripping property of paints, varnishes and related coatings when bending around the cylindrical axis. The instrument can be used for the thickness of the test plate is not greater than 1mm, as long as the shaft is not deformed, it can also be used for thick soft metal such as aluminum test plate, plastic test plate. For test plates with a thickness greater than 0.5mm, it is recommended to avoid using shafts with a diameter less than 10mm for testing.
WQ-II Cylindrical Bending Tester
Circular shaft (sleeve) configuration:
1 piece of 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm round shaft, 1 piece of 20mm, 25mm, 32mm round sleeve (set on 16mm round shaft when used).
WQ-II Cylindrical Bending Tester
Parameter
| Modell | WQ-II |
| Rod specification | 2-3-4-5-6-8-10-12-16-20-25-32mm |
| Thickness of test plate | ≤1mm |
| Test plate specification | 60×150mm |
| Grenzdimension | 280×135×135mm |
| package size | 240×160×150mm |
| gross weight | 3.35kg |
