Beschreibung

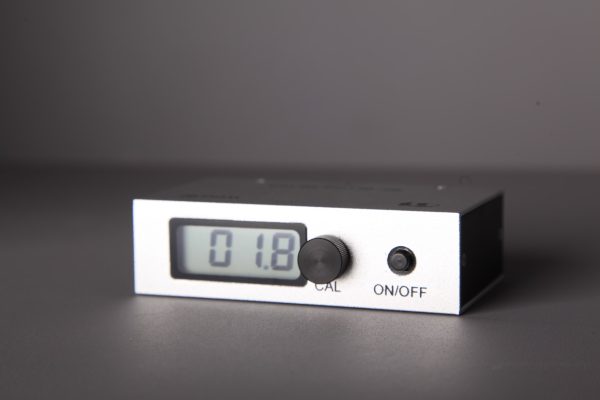

WGG-60 Ink Gloss Meter
Überblick:
WGG-60 micro portable mirror orientation single Angle gloss meter is a new portable microcomputer based on SOC technology. It has the advantages of low power consumption, accurate measurement, gute Stabilität, high reliability, easy operation and no need for zero adjustment. Its technical parameters fully comply with the standards GB/T 9754, GB/T 13981, GB/T 9966 and international standards ISO2813, ASTMD523, DIN67530, ASTM D1455, ASTM All the performance indexes of D2457 meet the requirements of JJG696-2002(Metrology Verification Regulation of mirror gloss meter). This product is suitable for paint, malen, Tinte, Plastik, stone, Papier, tile, enamel and other flat gloss measurement.

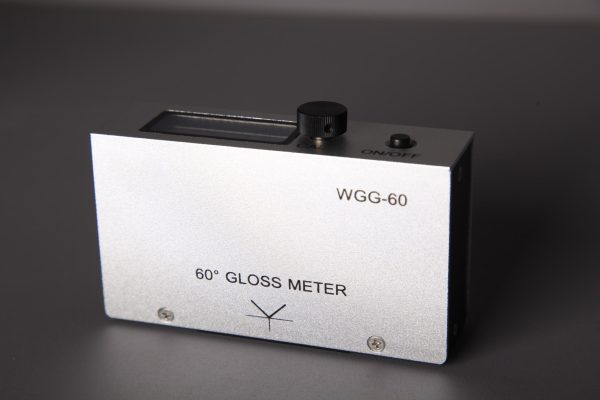

WGG-60 Ink Gloss Meter
Gerätefunktionen:
1, the ultra-small design can be put in the pocket, more convenient to carry, with small size, light weight characteristics.
2, the instrument uses a 5 Batterie, leicht zu bedienen, with automatic correction function.
3, the special moisture-proof process can let you rest assured that it is used in a variety of harsh environments.
4, both open and measured, no waiting time, numerical stability, no drift, can be measured quickly.
5, long life light source, no need to replace.
6, the matching between the light source and the photoelectric conversion meets the SD65(λ)y condition.
WGG-60 Ink Gloss Meter
Parameter
| Name | Miniature portable mirror to single Angle gloss meter
|
| Messbereich | 0-199.9GU |
| stability | Less than ±0.4GU/30Min |
| indication error | Less than ±1.2GU |
| indication error | 0.1GU |
| funktionierendes Netzteil | A 5 alkaline battery, an alkaline battery can be used continuously for 65 Std. |
| Projection Angle | 60° |
| spot size | 10mm×20mm |
| Measuring port size | 11mm×54mm |
| service environment | Umgebungstemperatur 0 ° C to 40 ° C Relative humidity ≤ 85% |
| Main engine size | 115×32×66mm(L×B×H) |
| Gewicht | 300G |
