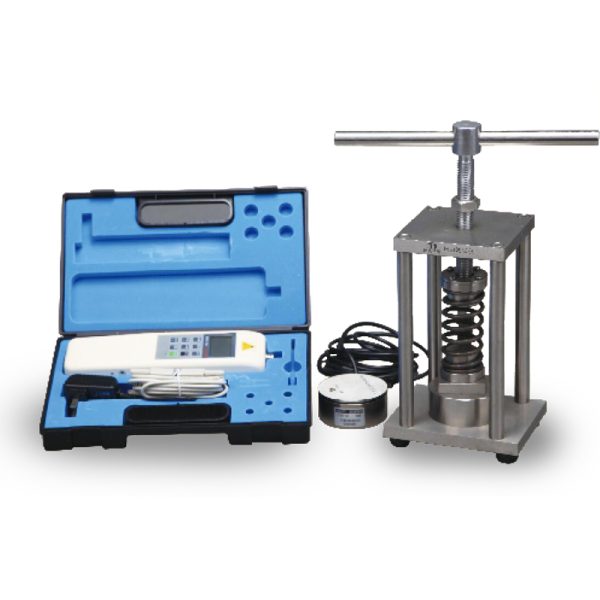

VPT-80 Press Instrument
- Beschreibung
- Anfrage
Beschreibung
VPT-80 Press Instrument
Überblick:
1. This product is mainly used for inks and coatings under pressure contact conditions of non-stickiness test.
2. The developed product has added the digital display function, and the digital display base can be used to accurately control the pressure during the pressure test process, and can also be used to calibrate the scale position of the required test pressure before the high and low temperature test. An additional base is used for high and low temperature tests, and the pressure is determined by the scale position. The digital display unit N and kg can be switched.
3. Accurate pressure, portable structure, einfache Bedienung. It can also be used for accurate compression of bonded specimens during curing.
VPT-80 Press Instrument
Erfüllen Sie den Standard:
GB/T 22374-2008 “Floor Coating Materials”
VPT-80 Press Instrument
Parameter
| Modell | VPT-80 |
| base diameter | 78mm |
| square ram | 50× 50 mm |
| Round indenter | 10cm2 |
| Druckbereich | 20N~800N |
| charging source | 220V 50Hz |
| Main engine dimensions | 150×120×400mm |
| package size | 400×310×280mm |
| gross weight | 14.6kg |
