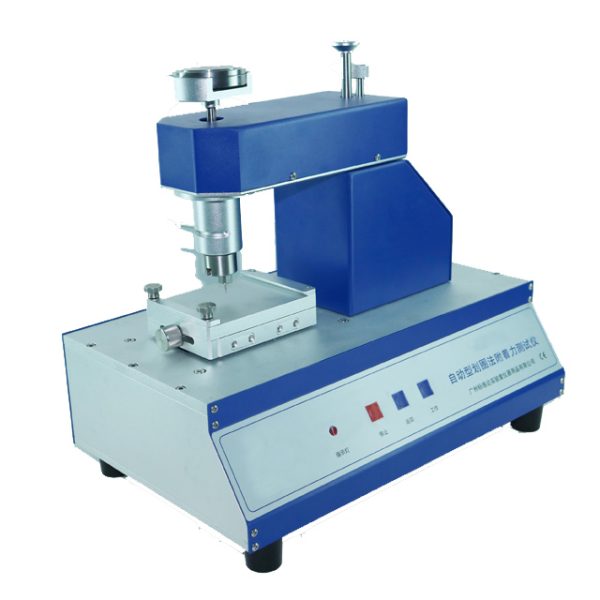

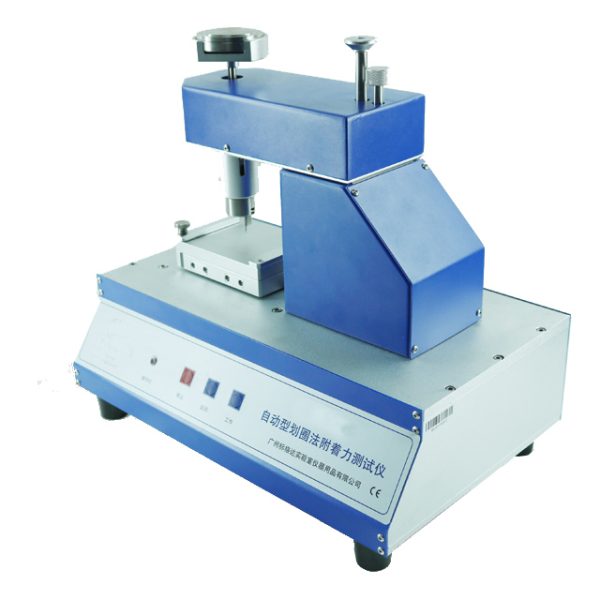

GA-6036 Vollautomatischer Markierungskreis mit Haftungstester

Beschreibung

Markierungskreis-Haftungstester

Zusammenfassung

It is the most traditional method in China to evaluate the adhesion of coating and substrate by the circle method.The method through a specially designed instrument on the coating under test continuous draw many of the same diameter of the circle, the circle at a certain distance with overlapping, and then press the circle intersecting part size is divided into seven parts.When evaluating the complete degree of the paint film, the corresponding grade should be evaluated in the area of a certain part with more than 70% of the coating.

Markierungskreis-Haftungstester

Besonderheit

It is the latest in the country, with the following characteristics compared with other traditional domestic machines:

All aluminum oxide fuselage, high grade, beautiful, Licht

The special indicator light automatically determines whether the pin can be broken into the bottom material, which has the characteristics of operation accuracy and convenience

The test results are highly reproducibility and comparability

The sliding platform is easy to test multiple times on the same test board

The rotary working arm design is very convenient for changing the needle and changing the test board

It adopts double nut to adjust the gap of the screw rod, the platform runs more smoothly, reducing the error caused by the thread clearance, and the data is more accurate

The working platform adopts double – oriented limit, which is more stable than single guide rail.

Once the test is completed, a key can be returned to the starting point

It is more convenient and fast to use the special tool to remove the needle

Precision machining thread control circle diameter, the test results are more accurate

The platform starts and ends with precise positioning, which ensures that each test can meet the standard schedule

Multi-level weight combination to get the most suitable weights.

The influence of inertia on the test load is reduced by the independent rotation design of the counterweight plate.

Carry out the calibration certificate

Markierungskreis-Haftungstester

Spezifikation

Radius of gyration	R=5.25mm
Work schedule	75mm
Turn needle	Three or five CARDS
Load weight	100G、200G、500G
The motor power	15W
Stromversorgung	220V 50HZ
Gesamtabmessungen	400×260×370mm（L*W*H）
