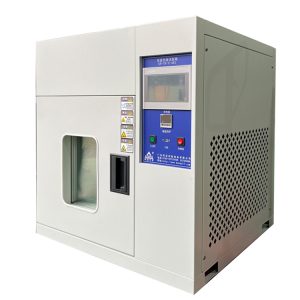

GA-2001-A Programmable Temperature Humidity Chamber
1.Designstandard:
| GB11158 | High Temperature Test Chamber Technical Condition |
| GB10589-89 | Low Temperature Test Chamber Technical Condition |
| GB10592-89 | High-low Temperature Test Chamber Technical Condition |
| GB/T10586-89 | Damp Heat Test Chamber Technical Condition |
| GB/T2423. 1-20 | Low Temperature Test Chamber Test Methods |
| GB/T2423.2-20 | High Temperature Test Chamber Test Methods |
| GB/T2423.3-93 | Damp Heat Test Chamber Test Methods |
| GB/T2423.4-93 | Alternating Damp-Heat Test Methods |
| GB/T2423.22-2 | Temperature Changing Test Methods |
| IEC60068-2- 1. | Low Temperature Test Chamber Test Methods |
| IEC60068-2-2. | High Temperature Test Chamber Test Methods |
| GJB150.3 | High Temperature Test Methods |
| GJB150.4 | Low Temperature Test Methods |
| GJB150.9 | Damp Heat Test Methods |
GA-2001-A Programmable Temperature Humidity Chamber
2.Verwendet
This equipment can simulate different environment condition. It’s appropriate for testing material
performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of
Material.
GA-2001-A Programmable Temperature Humidity Chamber
Funktion
It simulates the products in the chamber where the climate
condition of different temperature and humidity, such as high-low
operation and storage, temperature cycling, high-low temperature
and high-low humidity, moisture condensation etc. to check its
adaptability and changing performance.
It’s required to conform to international regulation (IEC, ER, GB,
MIL…) to reach the consistency (including test schedule, condition,
method) under the international standard.
Sample application
The chamber applies to:
compatibility test for store, transportation and application of
elektrisch, elektronische Produkte, unit components, parts and other
materials under high or low temperature.
The following samples are prohibited to be tested and stored:
– Inflammable , explosive and other volatile substances;
– Corrosive substance;
– Biont;
– Strong electromagnetic emission source.
Volumen, Größe & Gewicht
5.1. Volumen：36L
5.2. Internal size:W 350 x H300 x D350mm
5.3. Exterior size;W900 x H760 x D920mm
5.4. Gewicht：170KG
Performance
6.1. Test condition
Temperatur：+25℃, Feuchtigkeit: ≤85%, no samples in the chamber
6.2. Test method
GB/T 5170.2-1996 Temperature test chamber
GB/T5170.5-1996 Temperature and humidity test chamber (only
Temperatur und Luftfeuchtigkeit)
6.3. Temperaturbereich：-20℃→+150℃ (einstellbar)
6.4. Temperaturschwankungen：±0.5℃
6.5. Temperature accuracy distribution：±2.0℃
6.6. Humidity range：30%～98%R.H (temperature at 20℃-85℃)
6.7. Humid. fluctuation：±2.5%R.H.
6.8. Humidity accuracy distribution：±3.0%.
6.9. Heat-up time：-20℃ → +150℃ Heat up for 2-4.0℃/min
6.10. Cooling time： +150℃→ -20℃ Cooling for 0.7-1.0℃/min
6.11. Load condition：Testing space is not more than 3/4 of the total space, no heating
6.12. Sample holder：Stainless steel punching stencil
6.13. Relative humidity and temperature control range (refer to fig.)
6.14. Meet the technical standards：
GB/T 2423.1-2001 Test A: Low temperature test method
GB/T 2423.2-2001 Test B: High temperature test method
GJB 150.3-1986 High temperature test
GJB 150.4-1986 Low temperature test
IEC68-2-1 Test A: Cold
IEC68-2-2 Test B: Dry heat
GB11158 “Technical Conditions for High Temperature Test Chamber ”
GB10586-1 “Technical conditions for Damp heat test chamber ”
GB/T 2423.2 “Basic environmental testing procedures for electric and electronic products B: High temperature test method”.
GB/T 2423.3 “Basic environmental testing procedures for electric and electronic products Ca: Constant damp heat testing method” etc
Structure characteristics.
7.1. Insulated enclosure structure：
External material: SUS304 or stoving varnish
Inwall material: SUS304
Insulation material of box body: flame retardant fire rigid
polyurethane foam
Door thermal insulation material: flame retardant fire rigid
polyurethane foam
7.2. Air conditioning channel：
Centrifugal fan,Heater, evaporimeter, outfall, Temperatursensor
7.3. Test chamber standard：
Window 330x450x40mm 3 vacuum layers
Anti-explosion handle
Door hinge: SUS #304
Lamps in the chamber: 11W
Access port: φ50mm or φ100mm 1pc or more.
7.4. Door
Single door, open from left, handle is at right; With viewing window:
W300xH450mm, lamp window/condensation prevention thermal device
7.5. Controller
Control screen, overtemperature protection setting
7.6. machine room
Refrigeration units , water pans , outfall
7.7. control cabinet for power distribution
Switchboard fan, ventilator
7.8. Heater
Heating system: cycling heating from finned-tube Stainless steel electric heater
7.9. Humidifier
Oven humidification system, cycling winding system
7.10. Power line hole and
outfall position located at the back of chamber
