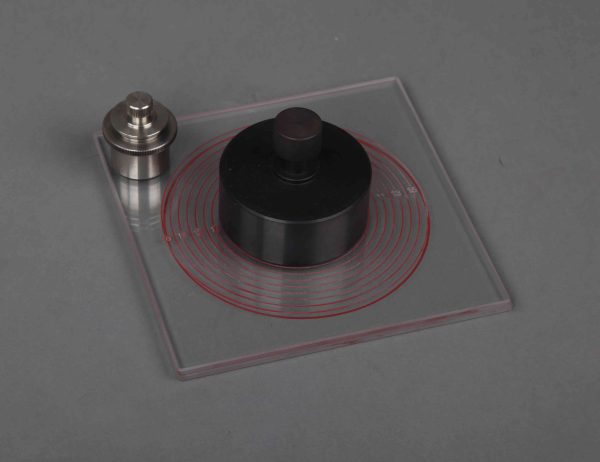

CCQ Consistency Tester

NZW-II Building Flush Tester NZW-II Building Flush Tester
BZT Non-stick Tire Tester BZT Non-stick Tire Tester

Kategorie:

Beschreibung

CCQ Consistency Tester

Purpose:
CCQ consistency tester is designed and manufactured according to the national standard GB1749 “Thick paint, putty consistency determination method”. Used for the determination of thick paint or putty consistency.



CCQ Consistency Tester

How it works:
After a certain volume of sample is taken under a fixed pressure for a certain period of time, the consistency of the sample is expressed by the diameter of the flow spread diffusion.



CCQ Consistency Tester
die wichtigsten technischen Parameter:
1, pump diameter: Φ29.7mm pump depth: 29mm pump volume: 20.07ml
2. Upper glass plate size: 200mm×200mm×6mm
The board is engraved with a red circle of Φ50mm to Φ160mm.
3, the lower glass plate dimensions: 200mm×200mm×6mm
There are carved lines on the board at Φ30mm and Φ160mm.
4, weight weight: 2000g±10g
5. Package size: 230×185×165mm
6. Gesamtgewicht: 4.3kg
7, paint knife and stopwatch.



CCQ Consistency Tester

How to use:
1. Place the lower glass plate on a flat test bench, place the pump in the center of the glass, fill the pump with a paint knife and scrape the sample flat. (No space allowed in the sample)
2. Use the pump plug to squeeze out the sample in the pump. (Note that while pressing the pump plug, the pump should be lifted up) Cut the sample on the pump plug with a paint knife and place it in the center of the glass plate.
3. Align the center of the circle of the upper glass plate with the center of the sample, and gently flat on the sample, and then gently place the weight on the center of the upper glass plate, and open the stopwatch at the same time, remove the weight after minutes, observe the scale of the sample on the glass plate and spread on the circle, record its diameter in centimeters, das ist, the test results. (If it is an ellipse, take the average of its long and short axes)



CCQ Consistency Tester

Precautions:
1, the test should be carried out under the conditions of constant temperature and humidity, or under the conditions agreed by the relevant parties.
2, after the test, the glass plate, pump, pump plug should be cleaned with solvent, (do not use metal tools to scrape) into the box, placed in a dry place for next use.
