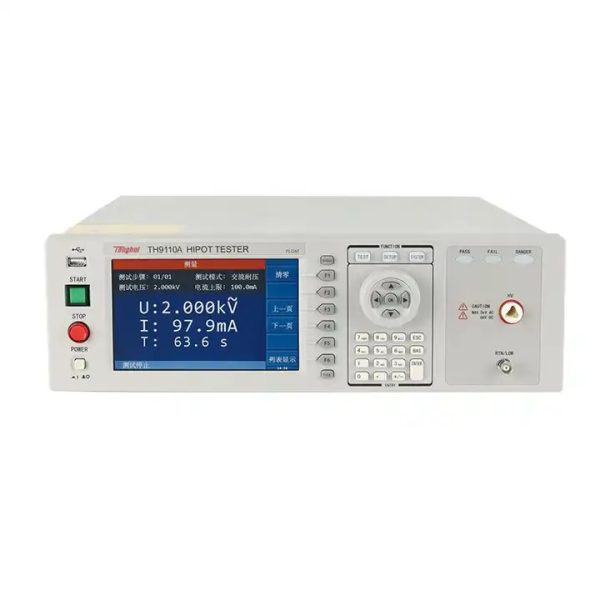

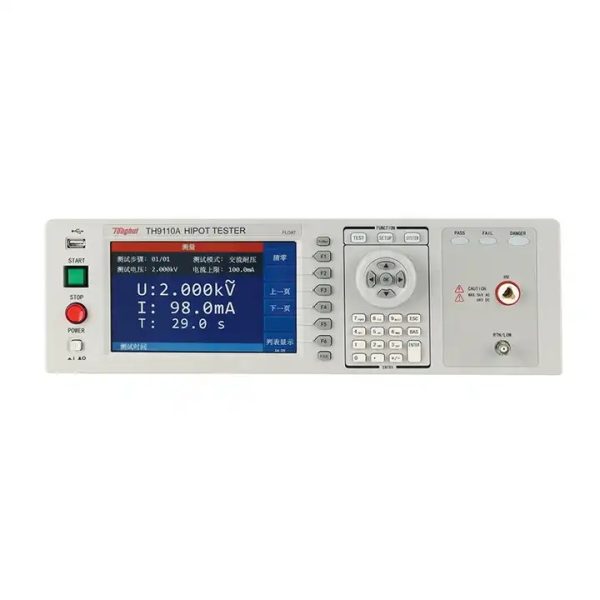

TH9110 Withstanding Voltage Insulation Tester
- Popis
- Poptávka
Popis
Withstanding Voltage Tester
Funkce
Vysoký výkon: AC 5kV / 100mA / 500VA output
High security:
High-voltage floating output design, in line with the safety
requirements of EU standards EN50191 (only TH9110)
Electric shock protection function
High resolution: 7 palec 800 × 480 dots, TFT-LCD displej
Brand-new operation interface, Chinese and English menu
ARC detection function
Contact check function (OSC)
Breakdown voltage test function
One-key screen capture function
One-key recording function
Rear panel output function to facilitate automated production line testing
Úložný prostor: 100 files, up to 50 steps per file
Withstanding Voltage Tester
aplikace
Winding devices
Transformers, generators/motors and other products needing high
-power withstand voltage test and analysis, such as different types of
motor stator, rotor and other high parasitic capacitance products
Electronic components
Capacitors, coils, cores, choke coils, filters and so on
Electrical products
Domácí spotřebiče, information products, audio-visual
equipment, electric heating appliances, lighting equipment
Withstanding Voltage Tester
Technický parametr
| Modelka | TH9110 | TH9110A | |
| Withstand Voltage Test | |||
| Výstupní napětí | AC | 0.05 – 5kV Load Variance:1% Přesnost:1% Rozlišení: 2PROTI | |
| DC | 0.05 – 6kV Load Variance:1% Přesnost:1% Rozlišení: 2PROTI | ||
| Aktuální testovací rozsah | AC | 0.001mA – 120mA(Voltage≤4kV);0.001mA – 100mA(Napětí>4kV) Přesnost:1% Rozlišení:1μA | |
| DC | 0.0001mA – 25mA Accuracy:1% Rozlišení:0.1 μA | ||
| Output Power | 500VA | ||
| Test izolačního odporu | |||
| Výstupní napětí | : 0.05 – 5kV Resolution:2V Accuracy:1% of set value + 0.1% v plném rozsahu | ||
| Rozsah testu odporu | 1MΩ-50.0GΩ Resolution:0.1MΩ | ||
| Funkce vypouštění | Automatic discharge after the end of the test | ||
| ARC Detection | AC | 1mA – 20mA | |
| DC | 1mA – 10mA | ||
| Contact Check Function | OSC open and short:600Hz, 0.1s | ||
| Security Features | |||
| High Voltage Floating Output | Leakage current <3 mA | —— | |
| Electric Shock Protection | 0.5mA ±0.25mA | ||
| Other Protection | Start protection, panel operation password protection | ||
| Alarm Indication | PASS: short tone, green light; FAIL: long tone, red light | ||
| Paměť | skupiny, 50 steps per group | ||
| General Parameters | |||
| Voltage Rise Time | 0.1s — 999.9s | ||
| Nastavení doby testu(AC/DC) | 0.3s — 999s | ||
| Voltage Fall Time | 0.1s — 999.9s | ||
| Čekací doba (A) | 0.2s — 999.9s | ||
| Přesnost času | ±(1%+0.1s) | ||
