NDJ-5S/8S/9S Brookfield Rotational Viscometer

Popis

NDJ-5S/8S/9S Brookfield Rotational Viscometer

Úvod

NDJ series digital rotary viscosity operation is more convenient, more accurate value measurement, more complete functions

With LCD backlight display, program setting, automatic control, timing measurement, automatické skenování, error alarm and other functions. The screen shows the viscosity, teplota, timing measurement time, Rychlost, rotor number, percent ratio, torque range of measurement to the viscosity and other information. The full range viscometer and the block linearity all through the computer interface with the standard silicone oil measurement correction, to ensure that the instrument has high sensitivity, vysoká přesnost, high repetition. The measured data is accurate and reliable, with good reproducibility.

The apparent viscosity of absolute viscosity or non Newton type liquid SNB series digital viscometer can be measured. The Newton type liquid viscometer data processing software can be summarized for rheological properties of non Newton liquid.

Widely used in grease, malovat, malovat, textil, jídlo, slurry, medicine, cosmetics and other adhesives, fluid, semi fluid production industry and scientific research units.



NDJ-5S/8S/9S Brookfield Rotational Viscometer

Hlavní rysy：

1.measurement data direct LCD screen display does not require two calculations

2., using the latest international microcomputer drive technology, import stepper motor, accurate speed, smooth and reliable

3., the use of advanced switching power supply technology, voltage and frequency range wide, power fluctuations will not affect measurement accuracy

4. level display device is very convenient on the front of the viscometer

5.all ranges, the display accuracy of viscosity value is accurate to two decimal places, to je, 0.01mPa.S.

6., with the function of timing measurement, it is very useful for detecting non Newtonian liquid

7.using small sample adapters, the amount of sample required for each measurement is very small, 18ml.

8., automatic scanning function, the instrument can automatically recommend the best combination of rotor and speed

9.automatically display the maximum range of viscosity that the selected combination can measure

10., with a print interface, you can directly connect to play micro printing machine, print a variety of data

11.optional data processing software, can record real-time viscosity with time, speed or rotor (smyková rychlost), temperature changes vary, which provides a good method to understand the viscosity and rheological properties of non Newtonian liquids.



NDJ-5S/8S/9S Brookfield Rotational Viscometer

Podrobné technické parametry:

Instrument model	Everns-5s	NDJ-9S	NDJ-8s
režim zobrazení	liquid-crystal display
Rychlost (ot./min)	6 / 12 / 30 / 60		0.3/0.6/ 1.5/3/6/12/30/60
rotor	1#、2#、3#、4# The 0# rotor is optional, for measuring ultra low viscosity below 15
rozsah měření(mPa.s)	1～100,000		1～2,000,000
Sample size required for each measurement	250 – 400ml
Viscosity display accuracy	0.01mPa.S
measurement error (Newtonská kapalina)	±3 %	±1.5%	±3 %
opakující se chyba （Newtonian liquid)	±1.5%	±0.75%	±1.5%
Timing measurement function	standardní konfigurace

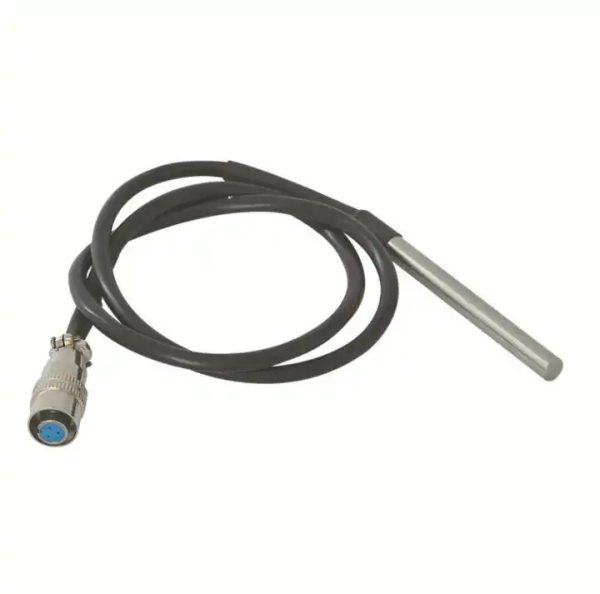

měření teploty	standardní konfigurace
Measurement range display	Can automatically display the maximum viscosity of composite rotor and speed of the selected measurement value
Constant temperature component	Option (special viscometer constant temperature bath, pohár s konstantní teplotou, temperature probe, atd.)
rozhraní pro výstup dat	standardní konfigurace
Data processing software	volba
funkční napájecí zdroj	110PROTI / 60Hz，220PROTI / 50Hz
obrysový rozměr	300 × 300 × 450(mm)
