GA-161CS GA-1614C RoHS detektor

Popis

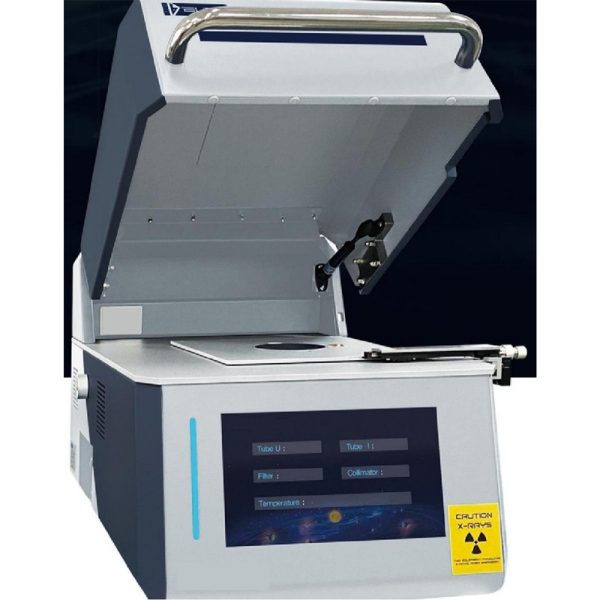

RoHS detector

1.Představení produktu:

The new generation of design, is a unique sense of science and technology of one-machine multi-purpose spectrometer, using advanced EFP algorithm and low-light clustering technology with a new generation of multi-channel timely sequencing, specialized type not only retains the performance of the special thickness gauge to detect small samples and grooves, but also can meet the micro-area RoHS detection and full element analysis. Every function is the most professional.

2.Výkonová výhoda

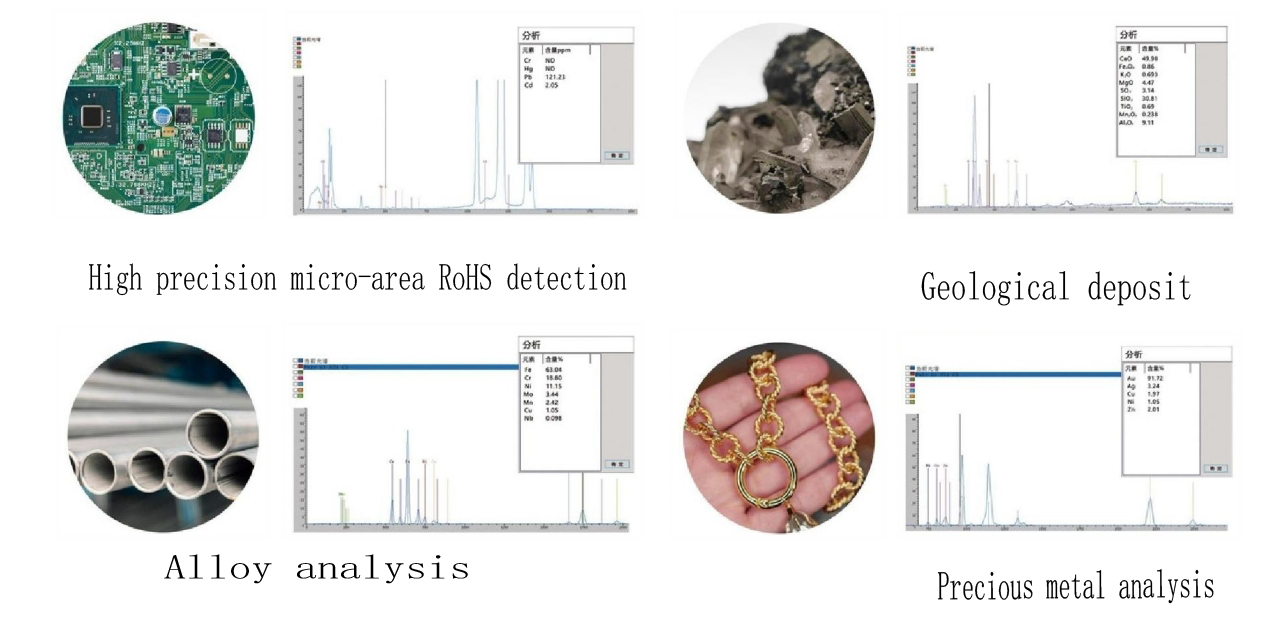

Micro sample detection Minimum measuring area 0.03mm² Zoom device algorithm The measuring distance can be changed to measure concave and convex shaped samples, and the zoom distance can reach 0-30mm Advanced EFP algorithm Li(3)-U(92) element coating, multiple layers of multiple elements, even the same element in different layers can be accurately measured Advanced spectrum resolution technology Reduce the interference of similar energy elements and reduce the detection limit High performance detector High performance SDD silicon drift detector with measurement accuracy up to nanometer level X-ray apparatus Microfocus enhanced ray tube with focusing device One machine multi-purpose, fine test fine test At the same time to meet the coating, RoHS, and alloy composition detection, and is the fine test, each use is professional grade
