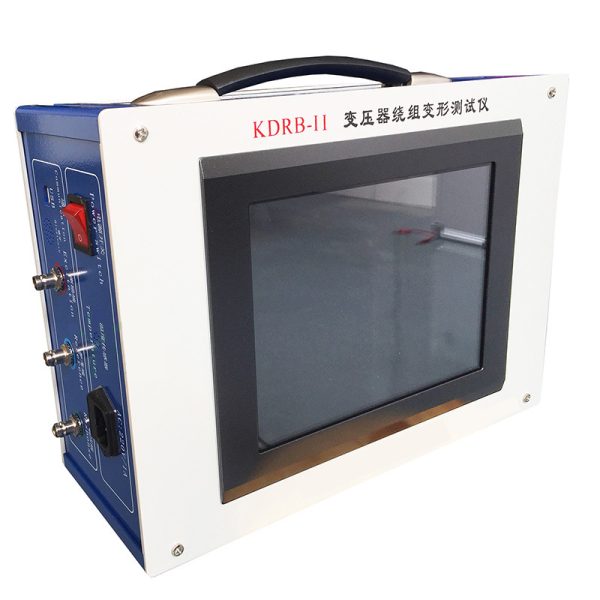

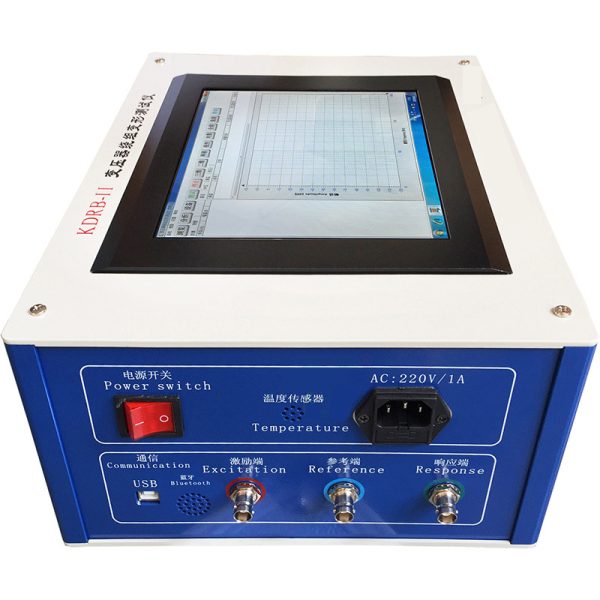

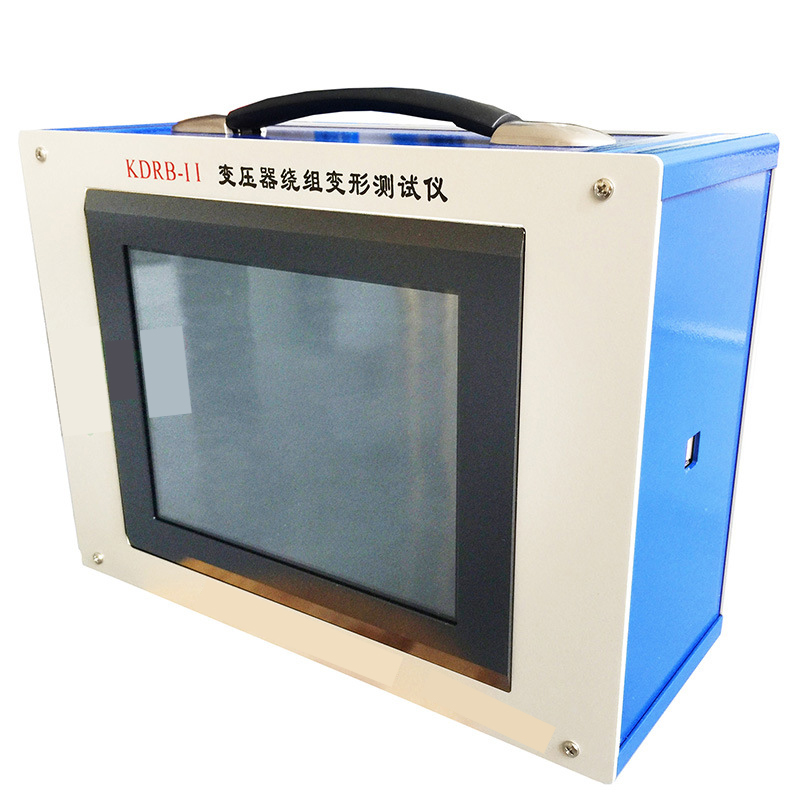

KDRB-II Transformer winding deformation tester
- Popis
- Poptávka
Popis
Transformer winding deformation tester
Scanning mode:
1) Linear scan distribution
① Sweep frequency measurement range: (10Hz)-(10MHz)40000 sweep frequency point, resolution of 0.25kHz, 0.5kHz and 1kHz.
2) segmented sweep frequency measurement distribution
① Sweep frequency measurement range: (0.5kHz)-(1MHz), 2000 sweep frequency points;
(0.5 kHz) – (10 kHz)
(10kHz)-(100kHz)
(100kHz)-(500kHz)
(500kHz)-(1000kHz)
Transformer winding deformation tester
| Amplitude measurement range | (-120dB) na (+20dB) |
| Amplitude measurement accuracy | 0.1dB |
| Scanning frequency accuracy | 0.005% |
| Signal input impedance | Signal input impedance |
| Signal output impedance | 50Ach |
| Signal output amplitude | ±20V |
| In-phase test repetition rate | 99.9% |
| Measuring instrument size | 370×300×170(mm) |
| Wire box aluminum alloy box size | 420×300×300(mm) |
| Total weight | 20kg |
| Provozní teplota | -10℃ to +40℃ Storage temperature: -20℃ to +70℃ |
| Relativní vlhkost | ＜ 90%, žádná kondenzace |
