GA-T300 Bending Strength Tester
Úvod

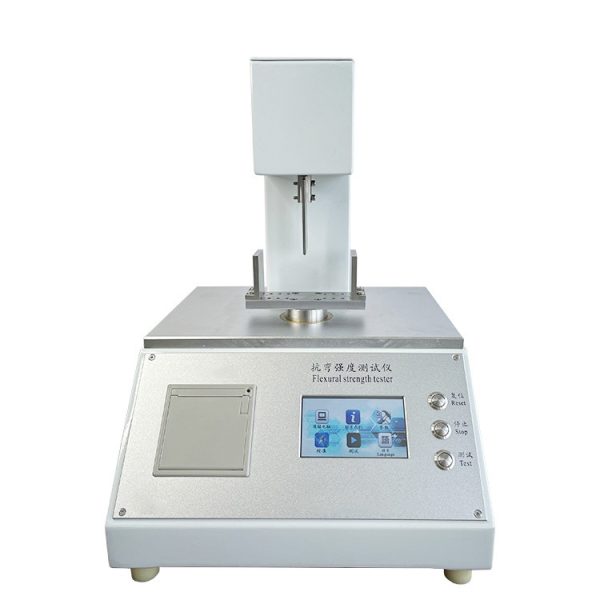

GA-T300 bending strength tester is used to test the bending strength of graphite materials. The flexural strength of the sample was measured by three point bending method. Widely used in universities, research institutes, testing centers and battery industry testing.
Standard:
GB/T 20042.7-2014 Proton exchange membrane fuel cells Part 7: Carbon paper characteristics test method, GB/T13465.2 2002 impervious graphite material bending strength test method
Test principle:
The indenter of the testing machine applies the load uniformly and without impact at the loading speed of 0.01mm/min-10mm /min until the sample breaks, and the breaking load value is read.
technické parametry:
Rozsah měření: (0 ~ 10N) The range can be customized
Rozlišení: 0.001N
Jednotka: N, MPa
Indicating accuracy: <±0,5 %
Rychlost: 0.01mm/min-20mm /min
Hmotnost: 20kg
Rozměry: 330×340×460mm
Zdroj napájení: AC110-240V, 50Hz
Man-machine interface: touch screen display in Chinese and English (real-time curve)
Connect to computer (Standard) : Equipped with computer software, RS232, Rozhraní USB, Bluetooth wireless connection
Vlastnosti produktu:
◆ Adopt American chip control, high precision force sensor, vysoká přesnost
◆ High performance stepping motor, precision ball screw drive, to ensure the instrument transmission accuracy. Aluminum alloy panel, high quality alloy steel tool, reasonable design, ensure the instrument durable
◆ Large touch screen Chinese display, pressure curve, friendly man-machine interface operation. Fully automatic test completion. Easy to operate, with the test data statistical processing function, micro printer output. The standard RS232 interface facilitates the external connection and data transmission between the system and the computer
