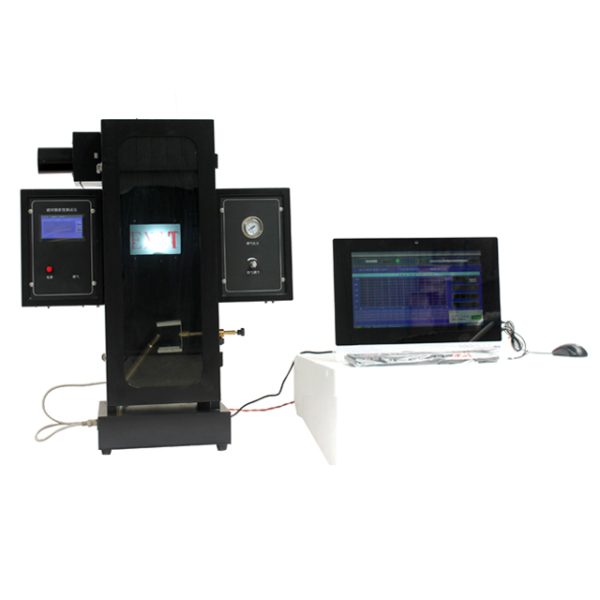

GA-9006 Smoke Density Tester
1
ee
eaca

GA-9006 Smoke Density Tester

GA-9005 Building Materials Test Chamber
GA-9007 Full-automatic Oxygen Index Tester GA-9007 Full-automatic Oxygen Index Tester

Kategorie:

Popis

GA-9006 Smoke Density Tester

Standard:

GB/T8627 ASTM D2843

GA-9006 Smoke Density Tester

Scope of application:

Touch-screen computer dual control smoke density tester for building materials was developed according to the technical conditions stipulated in GB/ t8627-2007 “test methods for smoke density of burning or decomposition of building materials”, which is applicable to the measurement of static smoke production from burning of building materials, products and other materials.

GA-9006 Smoke Density Tester

Vlastnosti produktu

  1. Dual control mode, can control the operation on the touch screen, can also be controlled on the computer, the operation mode can be arbitrarily switched!
  2. A device can operate several computers at the same time, several computers can be online at the same time, and LAN sharing can be realized!
  3. The main and auxiliary burners can rotate automatically and locate accurately.
  4. Independently developed the control program, which can meet all kinds of operations, records, real-time curves and results calculation in the test.



GA-9006 Smoke Density Tester

Relevant technical parameters

  1. For the maximum smoke density (MSD) and smoke density grade (SDR) of the specimen: 0-100% continuously measurable and automatically calculated;
  2. Calibration error with standard filter shall not be more than 3%;Each device is equipped with three standard filters, which are representative of the data of light source calibration
  3. Working pressure of Bunsen burner (210 + 5) KPa;
  4. The Bunsen burner applied flame to the sample for 4min;
  5. Burning lamp: in the Bunsen burner and a length of 260 mm, the nozzle diameter of 0.13 mm, with smoke box into a 45 Úhel;
  6. Photoelectric system: the light source is a bulb with 15W power and 6V working voltage;
  7. Exhaust air system: this machine is equipped with powerful exhaust fan, which can discharge exhaust gas out of the outdoor after the test;
  8. Smoke density measurement range: 0~100 %;
  9. Smoke density measurement accuracy: ±3 %;
  10. Přijímač: silicon photocell, light transmittance 0% is no light, light transmittance 100% is no shade completely through;
  11. Working pressure of main burner: 276KPa (nastavitelný);
  12. Automatic timing, automatic ignition, automatic smoke extraction;Optical flux can be divided into stages for linear correction test data A more accurate;
  1. Touch the screen:
  2. Velikost: 5 “effective display size 11cm long and 6.28cm wide;
  3. Rozlišení: 800*480
  4. Communication interface RS232, 3.3v CMOS or TTL, serial port mode
  5. Úložná kapacita :1G
  6. Pure hardware FPGA drive display, “nula” startup time, power can run
  7. M3+FPGA architecture is adopted. M3 is responsible for instruction analysis, and FPGA focuses on TFT display
  8. The main controller adopts a low-energy processor and automatically enters the energy-saving mode
  9. Zdroj plynu: 95% propane gas, or gas of the same purity (customer provided);
  10. Délka * šířka * výška 740 *500* výška 900 (mm)
