Near Infrared Fabric Analyzer
Ga 81350 Analyzer is a universal mobile portable analyzer with a compact size, built-in rechargeable battery, mass storage device and LCD module. Through different measuring accessories,it enables non-destructive rapid testing of some physical and chemical components in particle, powder and liquid samples, which is widely used in inspection of textile fiber and food quality, as well as scientific research.
Near Infrared Fabric Analyzer
Abundant measuring accessories
It provides a variety of measurement methods by connecting different types of probes and accessories.
The light source plane diffuse reflection probe supports diffuse reflection detection mode, and sample testing of flake, částice,paste and powder, such as the non-destructive testing of cloth, fruits, grains, plasty, papers and tobaccos.
Optical fiber diffuse reflection probe supports diffuse reflection and transflection detection modes. The former one is
applicable to single-grain sample testing, such as non-destructive testing of small fruit products and on-site testing of meat.
The other is for transparent liquid sample testing, including on-site testing of edible oil and fuel oil.
The cuvette rack supports transmission detection mode, which is mainly used in liquid sample testing.
It provides a variety of measurement methods by connecting different types of probes and accessories.
The light source plane diffuse reflection probe supports diffuse reflection detection mode, and sample testing of flake, částice,paste and powder, such as the non-destructive testing of cloth, fruits, grains, plasty, papers and tobaccos.

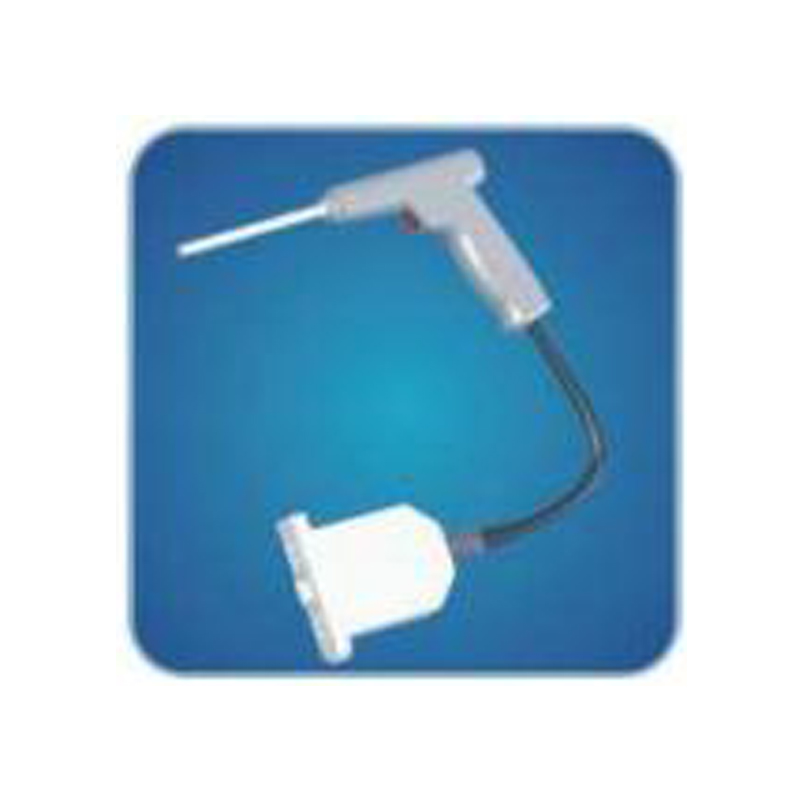

Optical fiber diffuse reflection probe supports diffuse reflection and transflection detection modes. The former one is
applicable to single-grain sample testing, such as non-destructive testing of small fruit products and on-site testing of meat.
The other is for transparent liquid sample testing, including on-site testing of edible oil and fuel oil.
The cuvette rack supports transmission detection mode, which is mainly used in liquid sample testing.
Near Infrared Fabric Analyzer
Vlastnosti produktu
. Stable and reliable portable solution
. Fast analysis speed, to detect multiple indicators simultaneously within 30 sekundy
. High measurement accuracy, close to the laboratory routine analysis accuracy
. Completely non-destructive rapid testing of on-site samples
. Abundant measuring accessories for different samples, ensuring easy probe replacement
. Built-in standard substance, s funkcí automatické diagnostiky a upozornění na poruchu
. Built-in mass storage device, to store analysis data and spectra
. Built-in USB interface, to directly transfer data to the computer
. RIMP software, to upload/download data and output analysis report
. Software applicable to different management permissions
. Easy to operate, even for non-technicians
. Multiple power supply modes: DC 19V and built-in lithium battery
. Malá velikost, lehká váha (only 6kg)
. Stable and reliable portable solution
. Fast analysis speed, to detect multiple indicators simultaneously within 30 sekundy
. High measurement accuracy, close to the laboratory routine analysis accuracy
. Completely non-destructive rapid testing of on-site samples
. Abundant measuring accessories for different samples, ensuring easy probe replacement
. Built-in standard substance, s funkcí automatické diagnostiky a upozornění na poruchu
. Built-in mass storage device, to store analysis data and spectra
. Built-in USB interface, to directly transfer data to the computer
. RIMP software, to upload/download data and output analysis report
. Software applicable to different management permissions
. Easy to operate, even for non-technicians
. Multiple power supply modes: DC 19V and built-in lithium battery
. Malá velikost, lehká váha (only 6kg)
| název | Specifikace |
| Rozměry (L × W × H) | (355 ×278 × 117) mm |
| Hmotnost | <6 kg |
| Použitelné vzorky | Solid and liquid samples, with various probes available |
| Testovací metoda | Diffuse reflection and transflection detection |
| Napájení světelného zdroje | Internal light source of 5V/5W; external light source of 5V/10W |
| Light source life | > 5000 hodin |
| Detektor | TEC refrigerated and temperature-controlled indium gallium arsenide (InGaAs) detektor |
| Komunikační rozhraní | USB 2.0 |
| Zdroj napájení | DC 19V adapter or built-in lithium battery (lifetime: up to 8 hodin) |
| Rozsah vlnových délek | 1000-1800nm |
| Absorpční hluk | <50uA |
| Přesnost vlnové délky | ±0.2nm |
| Opakovatelnost vlnové délky | <0.01nm |
| Spektrální rozlišení | (10.95±0,3) nm @ 1529,5 nm |
| Zbloudilé světlo | <0.15% |
| Čas analýzy | < 30 sekundy |
| Number of storage model sets | Group 16 |
| Number of indicators for simultaneous analysis | 6 |
| Stored spectrogram | Článek 320 |
| Stored analysis results | 4000 |
Specifications and parameters
| název | Specifikace |
| Rozměry (L × W × H) | (355 ×278 × 117) mm |
| Hmotnost | <6 kg |
| Použitelné vzorky | Solid and liquid samples, with various probes available |
| Testovací metoda | Diffuse reflection and transflection detection |
| Napájení světelného zdroje | Internal light source of 5V/5W; external light source of 5V/10W |
| Light source life | > 5000 hodin |
| Detektor | TEC refrigerated and temperature-controlled indium gallium arsenide (InGaAs) detektor |
| Komunikační rozhraní | USB 2.0 |
| Zdroj napájení | DC 19V adapter or built-in lithium battery (lifetime: up to 8 hodin) |
| Rozsah vlnových délek | 1000-1800nm |
| Absorpční hluk | <50uA |
| Přesnost vlnové délky | ±0.2nm |
| Opakovatelnost vlnové délky | <0.01nm |
| Spektrální rozlišení | (10.95±0,3) nm @ 1529,5 nm |
| Zbloudilé světlo | <0.15% |
| Čas analýzy | < 30 sekundy |
| Annex name | Light source plane
diffuse reflection sonda |
Optical fiber diffuse reflection probe | Cuvette rack | |
| Test sample type | Cloth, solid particles or powder | Liquid (such as edible
olej) |
Single-grain seed,
western medicine, plastic particle |
Liquid, such as gasoline, wine, atd |
| Spot diameter | 30mm | 5mm | 5mm | 5mm |
| Optical path | 2 5 10mm | 2 5 10 50mm | ||
