GA-7002 Electromagnetic type vertical vibration tester
1.Úvod
- Přehled produktů: electromagnetic vibration test series are widely applicable to national defense, kosmonautika, communications, electronics and automobiles, home appliances and other industries.This type of equipment is used for detecting early faults, simulating actual condition assessment and structural strength test. The product has a wide range of applications, wide applicable surface, and remarkable and reliable test results.
◎ humanized operation and control, using professional control software control, make the equipment work more stable, more reliable
◎ the whole machine is made of compound industrial materials, precision processing, super quiet
◎ the table panel is made of magnesium aluminum alloy material, which can completely isolate the magnetic field interference and effectively prevent magnetization of the measured object
◎ sweep frequency and fixed frequency operation mode, adapt to different industry testing requirements
◎ high precision frequency output, four-point synchronous vibration, even vibration table
◎ strong anti-magnetic and anti-interference ability
◎ has the safe and reliable protection function
◎ the platform body adopts high efficiency and low noise fan to cool down, ensuring a long time of continuous operation.
GA-7002 Electromagnetic type vertical vibration tester
Technické parametry
| Frekvenční rozsah (Hz) | 5~400 | Sweep frequency range (Hz | 5~400 |
| Maximum acceleration (m/s2) | 170 | Maximum test load (kg) | 20 |
| Maximum no-load displacement (mmp-p) | 0~2 (automatické nastavení) and 0~5 (manual adjustment) | Vibration waveform | sine wave |
| Vibration axial | vertical | Excitation mode | electromagnetic excitation |
| Vibration control mode | closed-loop control | Data acquisition mode | vibration data acquisition instrument + acceleration sensor |
| Operační mód | touch screen control (operation language: Simplified Chinese and English) | cooling mode | air cooling |
| operating temperature requirements (℃) | 0~+40 | working humidity requirements (%RH) | 0-90, žádná kondenzace |
| power supply requirements | single-phase AC 220V/50Hz ±10% | System power consumption (KVA) | 2.5 |
| total weight (kg) | 150 | table size W.D.H (mm) | 450×450×43 |
| body size W.D.H (mm | 450×450×385 | control cabinet size W.D.H (mm) | 500×400×860 |
GA-7002 Electromagnetic type vertical vibration tester

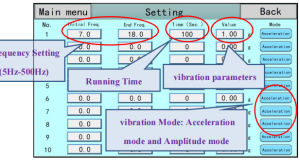

Touched screen controller menu
