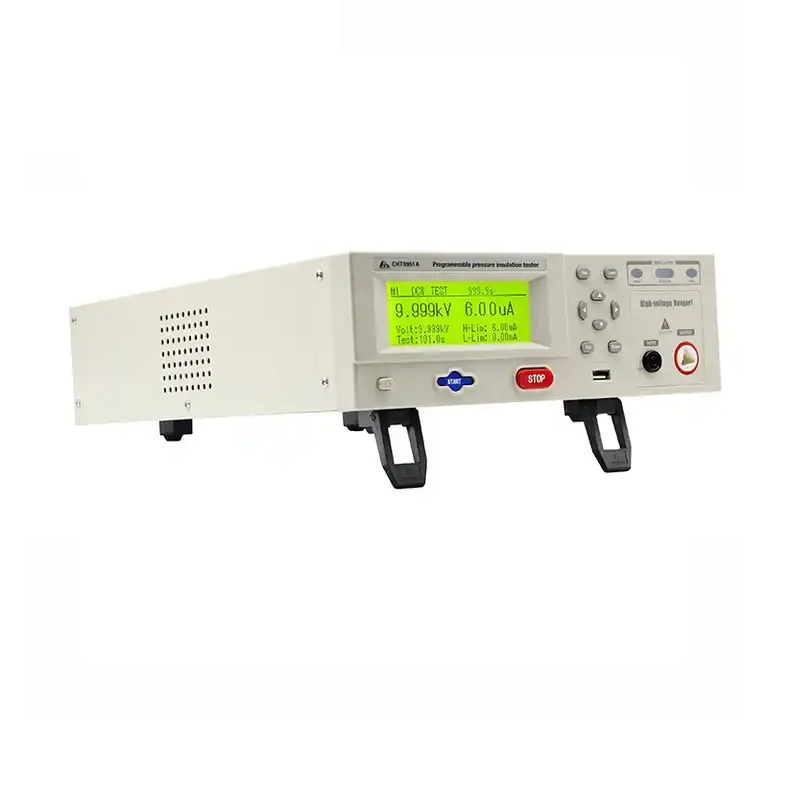

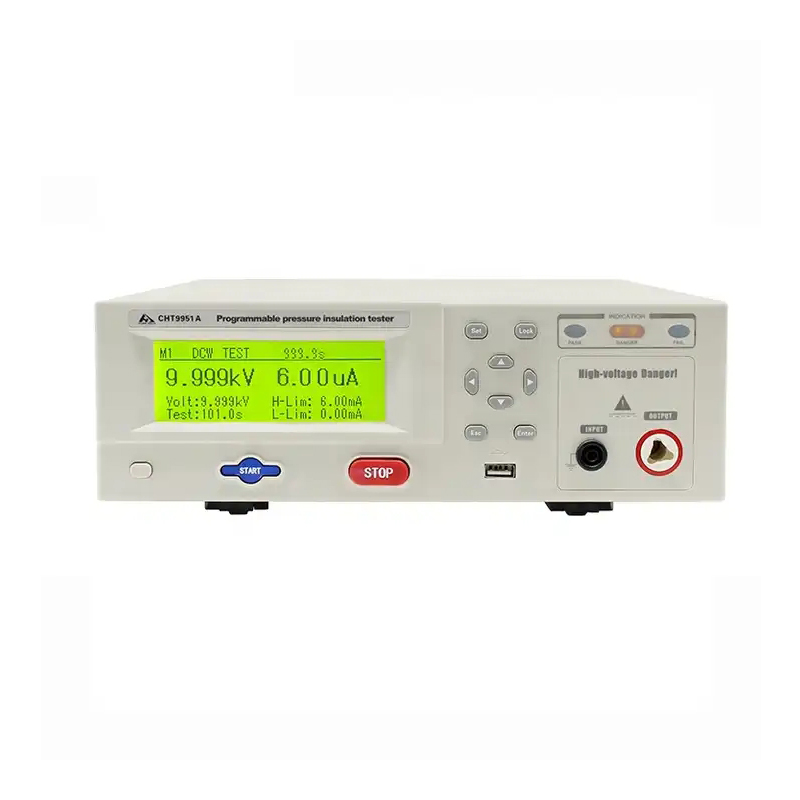

CHT9951A Photovoltaic Insulation Withstand Voltage Tester
- Popis
- Poptávka
Popis
Withstand Voltage Tester
Úvod:
CHT99xx series program-controlled hipot tester with AC withstand voltage test,
DC withstand voltage test and insulation resistance test function.
Ve stejnou dobu, it has arc detection and over power detection.
With 6 test modes which can realize programmable testing.
Optional RS485 interface, instrument networking can be easily realized
through MODBUS communication protocol.
Withstand Voltage Tester
FEATURE:
Voltage rise-time is less than 0.2s
Insulation resistance test-range is 100KΩ ~ 99GΩ
Measuring end test has grounding mode and floating mode
Vestavěný 3 group test modes, each mode can be combined to compare
Various interface configuration suitable for automated test system
Withstand Voltage Tester
| Modelka |
CHT9910 |
CHT9912 |
CHT9922 | CHT9951A | CHT9950A | |||||
| Zobrazit |
95mm*20mm monochrome LCD |
|||||||||
|
Parametry měření |
Withstand voltage / unikající proud |
Withstand voltage / leakage current/insulation resistance |
||||||||
| Voltage resolution |
1PROTI |
|||||||||
| Voltage basic accuracy |
3% |
|||||||||
| Frekvence |
50Hz/60Hz |
|||||||||
| Výstup |
AC |
0.5kV-5kV |
0.5KV-5kV |
0.5kV-5kV |
—— |
0.01KV-6KV |
||||
|
12mA |
0-12mA |
—— |
12mA |
|||||||
|
DC |
—— |
0-6kV |
0.5KV~10KV |
0.01KV-6KV |
||||||
|
—— |
0-6mA |
5mA |
12mA |
|||||||
| Current resolution |
1uA |
|||||||||
| Current basic accuracy |
±3%+2 digits |
|
± (3%+2 digits) |
± (1%+2 digits) |
||||||
|
Voltage rising time |
0.1s-999.9s |
|||||||||
| Testing time |
0.1s-999.9s |
|||||||||
| Arc test function |
1~9 class |
|||||||||
| Insulation resistance range |
—— |
—— |
100kΩ~99GΩ |
100kΩ~99GΩ |
100kΩ~99GΩ |
|||||
| Voltage output |
—— |
—— |
0.5kV~1.0kV |
0.1KV~2.0KV |
0.5kV~1.0kV |
|||||
| Memory group |
3 skupiny |
|||||||||

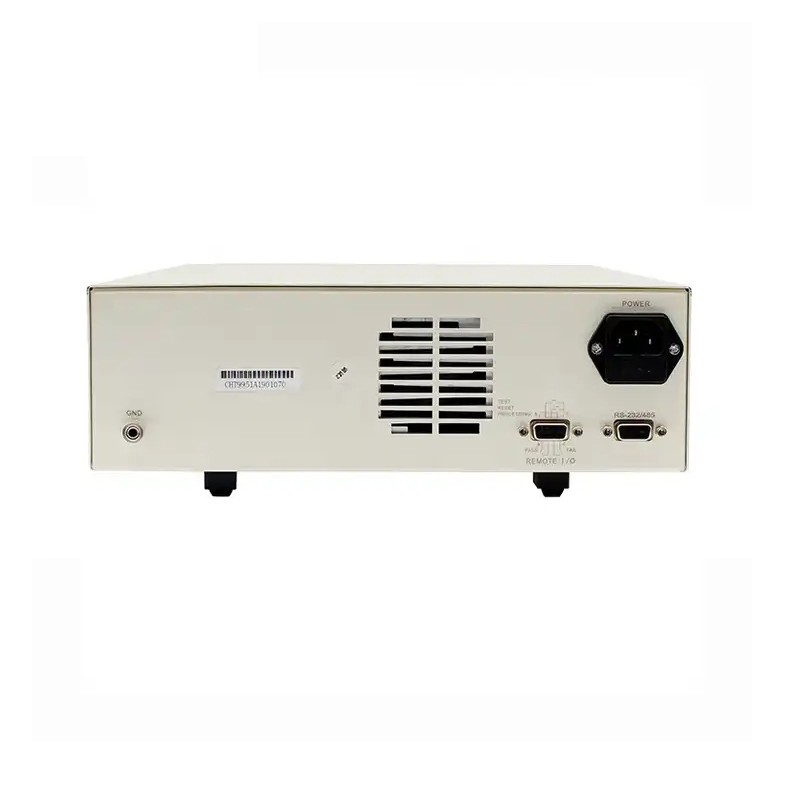

| Rozhraní |
PLC Interface, RS485, RS232C (Volitelný) |
|||||||||
| Zdroj napájení |
Napětí: 198VAC~240VAC, frekvence: 47Hz-63Hz |
|||||||||
| Napájení (max) |
100VA |
|||||||||
| Velikost a hmotnost |
374mm(L)*280mm(W)*99mm(D)/ 7.5kg |
|||||||||

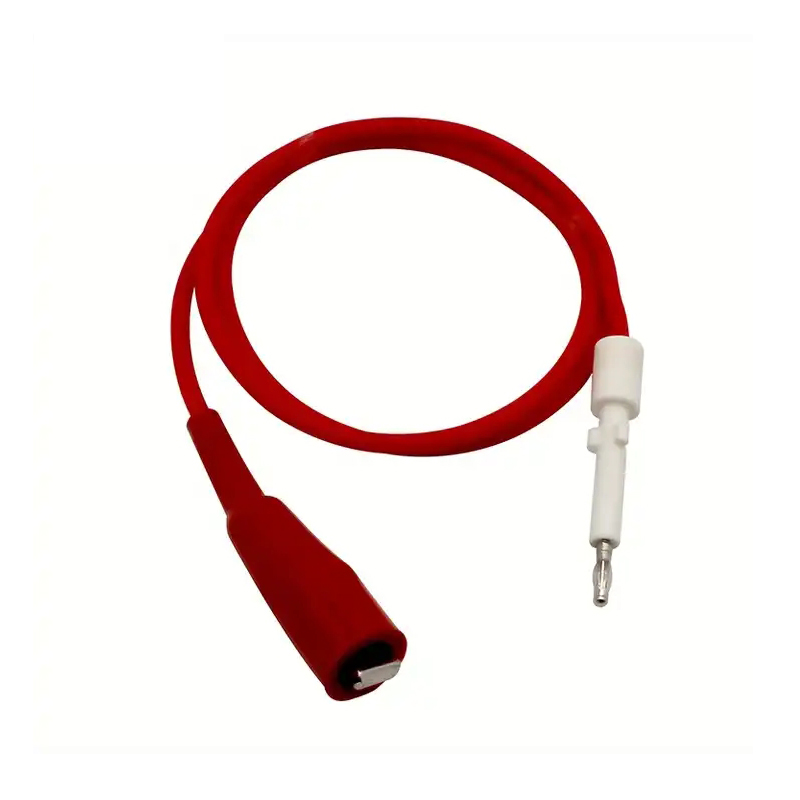

| Příslušenství |
CHT9950 high voltage test cable,CHT9900 sampling test leads |
|||||||||
