Описание

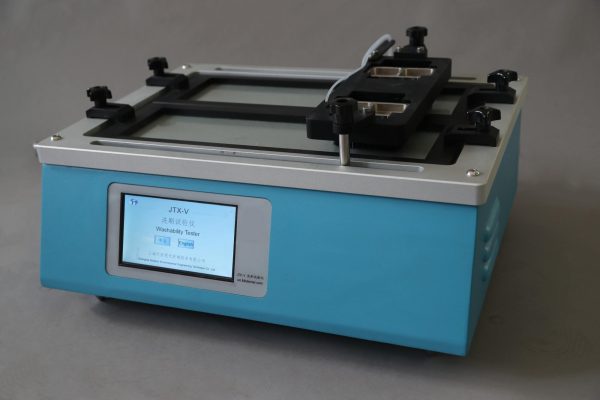

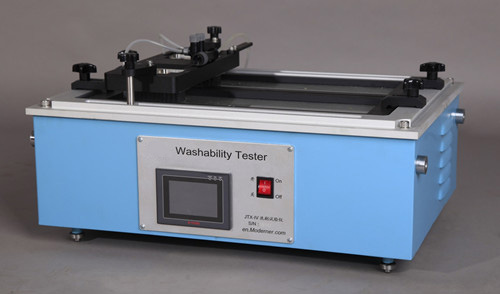

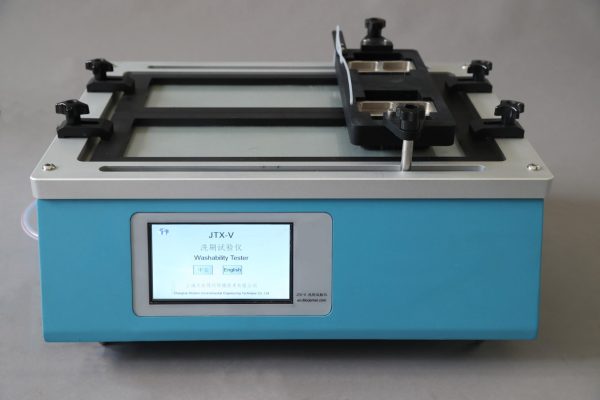

Jtx-ⅳ / V инструмент, устойчив на миене
Преглед:
Type JTX-IV (brush resistance and stain resistance) is based on GB/T 9266 “Determination of architectural coating resistance to brush” standard and GB/T 9755 “Synthetic resin emulsion exterior wall coating” standard Appendix C on the requirements of brush test and GB/T 9780 “Architectural coating stain resistance test Method” standard on the requirements of the stain resistance test design, manufacturing, used to evaluate the coating brush resistance and stain resistance, can also be used to evaluate the film composite treatment of the surface (като: боя, plating, floor, cover layer, wood density, и т.н.) performance. The device carries out washing test on the paint coated on the standard test board, and the washing frequency can be controlled and read by the touch screen. The scrubbing resistance of the coating is evaluated according to the number of scrubbing resistance, and the stain resistance of the coating is evaluated according to the comparison before and after scrubbing.
Type JTX-V (brush resistance, stain resistance, wet scrub resistance multi-purpose type) is based on GB/T 9266 “Determination of architectural coating resistance” standard and GB/T 9755 “Synthetic resin emulsion exterior wall coating” standard Appendix C on the requirements of brush test, GB/T 9780 “Architectural coating stain resistance test method” standard on the requirements of the stain resistance test, GB/T 31410 “Color paint and varnish coating resistance is scrubbing and cleanability evaluation” on the requirements of wet scrubbing, designed and manufactured for the evaluation of coating brush resistance, stain resistance and wet scrubbing resistance. It can also be used to evaluate the properties of film composite treated surfaces (such as paint, plating, flooring, cladding, wood density, и т.н.). The device carries out washing test on the paint coated on the standard test board, and the washing frequency can be controlled and read by the touch screen. The scrubbing resistance of the coating is evaluated according to the number of scrubbing resistance, and the stain resistance of the coating is evaluated according to the comparison before and after scrubbing
Jtx-ⅳ / V инструмент, устойчив на миене
Параметър
| Модел | JTX-IV | JTX-V |
| Scrubbing brush specifications | 38×90mm | 38×90mm |
| Total quality of scrubbing brush (including brush holder) | 450±2g | 450±5g |
| Stain resistant counterweight quality | 300ж / 500g （1 piece each） | |
| Stain resistant grinding head (including grinding head holder) quality | 700ж | |
| Total mass of stain resistant grinding head (including weights) | 1500ж | |
| Wet-resistant scrubbing brush holder (excluding cleaning cloth) quality | 135±1g | |
| reciprocating travel | 300мм | One-way 200/250/300mm/ optional |
| Test plate size | 430×150mm | 430×150mm |
| Peristaltic pump working mode | Ръчно/автоматично | |
| Peristaltic pump flow | 0.1~20ml/min | |
| Reciprocating frequency | 37±2 time/min | 20/25/30/35/37 minute（min） |
| Мощност | 90У | 210У |
| Захранване | 380V 50Hz（220Vcustomizable） | 85~264VAC 50/60Hz |
| гранично измерение | 620×430×450mm | 570×440×350mm |
| Main engine weight | 43килограма | 41килограма |
| package size | 700×590×350mm | 700×590×350mm |
| Gross weight | 61.5килограма | 57килограма |
