Описание

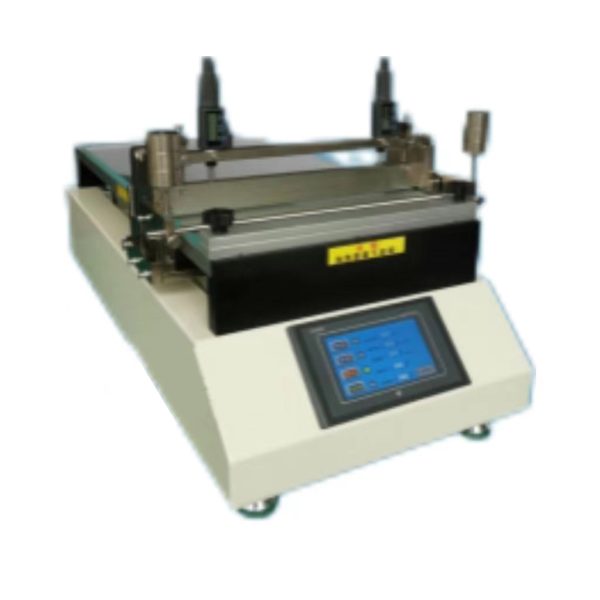

Coating Machines
The greatest advantage of the small laboratory coater is that it can repeatedly and continuously prepare smooth, flat and flawless test samples. It is convenient for experimentalists to accurately coat different substrates, reducing and eliminating the error caused by human factors such as different coating speed and pressure. The coating head uses a special scraper to imitate a large coating head to ensure that the experimental product and production coating quality match, and the coating head can be quickly opened at 90 degrees to clean the scraper after each experiment.
Преглед на продукта: Laboratory small coating machine all use high-quality accessories, and the price is cheap, has been many multinational enterprises R & D institutions, many well-known universities at home and abroad. By controlling the speed and stable pressure to ensure the coating effect, to ensure the uniformity and stability of the coating
The biggest feature of the laboratory small coating machine can be used in paper, пластмаса, метал, PVC, PET, плат, aluminum alloy plate and other flat materials for coating experiments.
Coating Machines
| Control system | Maosen self-developed /PLC touch screen |
| Coating method | scraper/wire rod (separately coated) |
| Scraper lift | back turning type (лесен за почистване) |
| Coating speed | digital display set 1-5 m/min |
| Length setting | digital display set 10-450MM |
| Temperature control | room temperature ~160 degrees (постоянна температура) |
| Levelling device | with levelling rod, first flatten the material before coating. |
| Surface material | Aluminum + glass (removable)
Uniform coating: ± 4% (depending on material smoothness) |
| ширина | 300*450MM |
| Coating thickness | 0.005-5MM (wet film) |
| Machine volume | Дължина 800* ширина 380* height 410 (reference) |
| Machine weight | Net weight: 44КИЛОГРАМА (reference) |
| Wire rod device | comes with wire rod device (wire rod selection, one thickness of a wire rod) |
| Wire rod weights | with two counterweight weights (регулируема) |
| Rod size | Diameter 10* Length 400mm(universal) |
| Scraper material | alloy stainless steel material |
| Захранване | Voltage 110~220V 50/60HZ |
| Power rate | 48У(standby) 2000У (отопление) |
| Забележка | Low viscosity and high precision wire rod coating machine is better, high viscosity scraper coating effect is better! |
