GA-5022-B Single Arm Package Drop Tester
- Описание
- Разследване
Описание

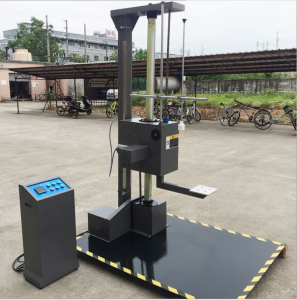

Drop Tester
Product use:
This machine is specially used to test the damage of product package to fall and evaluate the applicable standard of impact strength during transportation and transportation: ISO2248 jisz0202-87 GB/ t4857.5-92

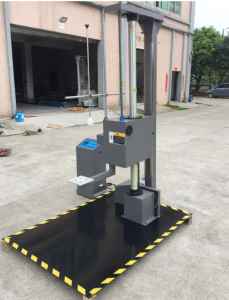

Drop Tester
Machine features:
Single arm drop tester can perform free drop test on the surface, Angle and edge of the package, equipped with digital height indicator and decoder for height tracking, so that the product drop height can be accurately given, and the error with the preset drop height should not exceed 2% or 10MM.The machine adopts single arm and double column structure, with electric reset, electric drop control and electric lift device.The unique buffering device greatly improves the service life, stability and safety of the machine.Single arm setting, easy to place product.
Drop Tester
Основни технически параметри:
| Drop height mm | 300-1500 регулируема |
| Maximum weight of specimens | 0-80килограма |
| Base thickness | 10мм (solid iron plate) |
| Maximum size of specimen mm | 800 х 800 х 1000 |
| Impact panel size mm | 1700 х 1200 |
| Drop height error | ±10mm |
| Appearance and size of the test bench mm | 1700 х 1200 х 2315 |
| Net weight kg | 300килограма |
| Метод на изпитване | Flat drops，Edge Drops，Corner Drops
· |
| Режим на управление | electric |
| Drop height error | 1% |
| Parallel error of hitting panel | ≤1° |
| Error of Angle between falling surface and level during falling | ≤1° |
| Мощност | AC380V 50HZ 1.85KWA |
Machine studio environment requirements
28 ℃ temperature: 5 ℃ ~ + [1] average temperature 28 ℃ or less (24 часа)
Относителна влажност:≤ 85%RH
Power supply conditions three-phase four-wire + protection ground line,
Voltage range: AC (380 ± 38) V
