Описание

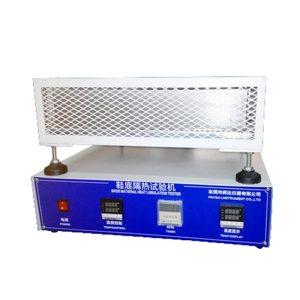

Sole Insulation Tester
Отговарят на стандарта:
ISO 8782-1, ISO 20344, GB/T 20991, 5.12
Sole Insulation Tester
Въведение
The sole insulation testing machine is used to detect the high temperature resistance of the sole material such as rubber and polymer.
Insulating testing methods: sole stays tester of brushwork is the sandbox is heated to 150 ℃, make the sand sample upper and sole contact, insoles temperature records in 30 минути, along with the change of time accurate to 0.5 ℃.
Sole Insulation Tester
технически параметри
1.The sandbox: equipped with adjustable to 150 + 5 ℃ heat conducting plate.
2.The sand height is greater than 5cm.
3.Sand grain size: 0.3 ~ 1.0mm.
4.The heat transfer medium: standard Ф 5 mm steel ball, the total quality of 4 килограма.
5.Copper/cu ni thermocouple: welding a copper disk with a thickness of 2 + / 1mm and a diameter of 15 + / 1 мм.
6.Temperature measurement and recording device: с 5 fitting, with compensator.
7.The temperature control precision: plus or minus 2 ℃.
8.Hot plate maximum temperature: 250 ℃.
9.Heating power: 2.5kw.
10.Тестова зона: относно 250 x 460mm or 400 x 400mm.
11.Сила на звука: относно 105 х 45 by 55cm
