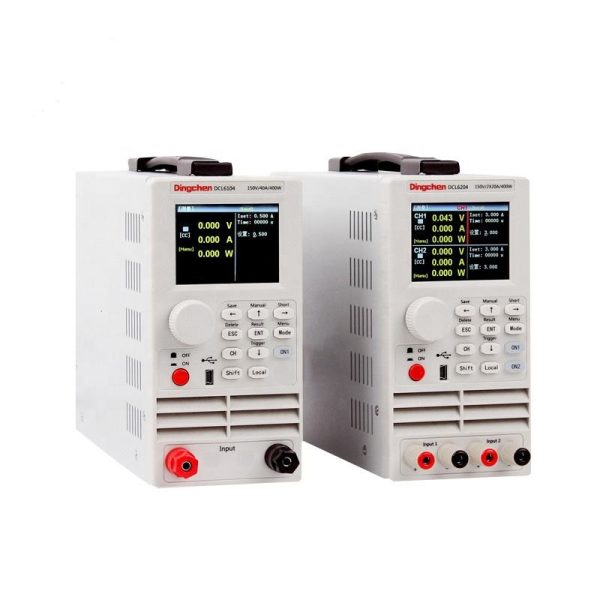

DCL6104 Programmable DC Electronic Load

Описание

Programmable DC Electronic Load

DCL6000 series electronic load is equipped with a 2.8-inch LCD display screen, which has fashionable appearance and is easy to operate.With a wide range of power test, the electronic load has a voltage/current measuring speed of up to 40KHz, and the test resolution can reach 0.1mV/0.1mA. A variety of test functions and modes are available for choice.The load is equipped with RS232 communication module and control interface module, and is able to flexibly meet various field test conditionsandfacilitate seamless connection with automatic production line and automatic test system (ATS).The electronic load is stable and widely used to meet various test requirements.

Programmable DC Electronic Load

Технически параметър

Mode	Мощност	Волтаж	Текущ	Channel number	Дисплей panel	Основен защита	RS232 communication	Control module
DCL6104	400У	150V	40А	single channel	2.8 inch TFT	hardware support	стандартна конфигурация	optional configuration
DCL6104A	400У	500V	15А	single channel	2.8 inch TFT	hardware support	стандартна конфигурация	optional configuration

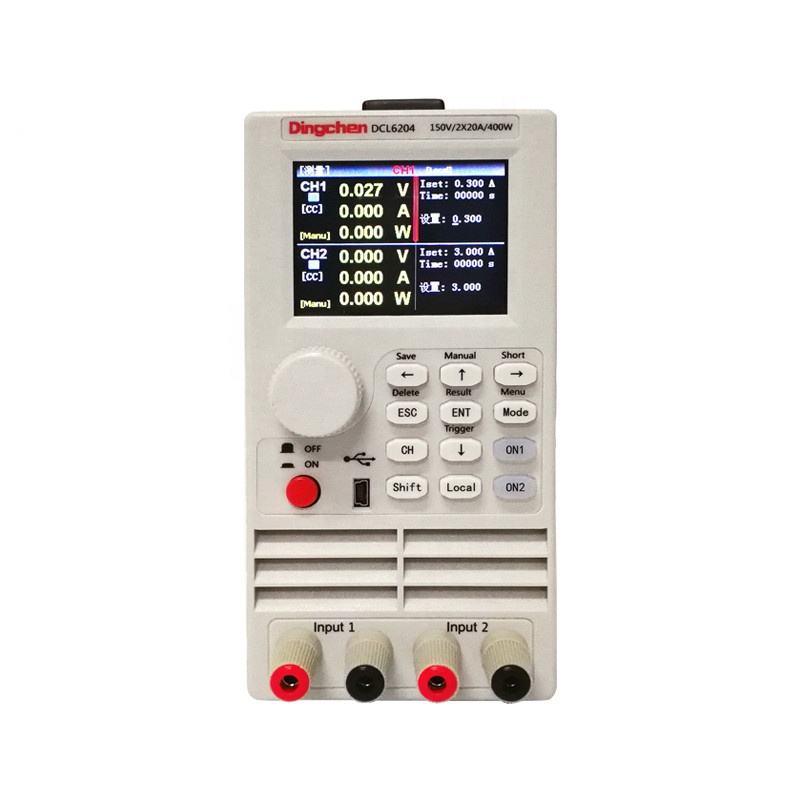

DCL6204	400У	150V	2×20A	Binary канал	2.8 inch TFT	software support	стандартна конфигурация	optional configuration
