CS-392 Three Angles Spectrophotometer

YS6060 Benchtop Grating Spectrophotometer YS6060 Benchtop Grating Spectrophotometer
DS-1050 Image Spectrophotometer Price

Категория:

Описание

Спектрофотометър

1. Въведение

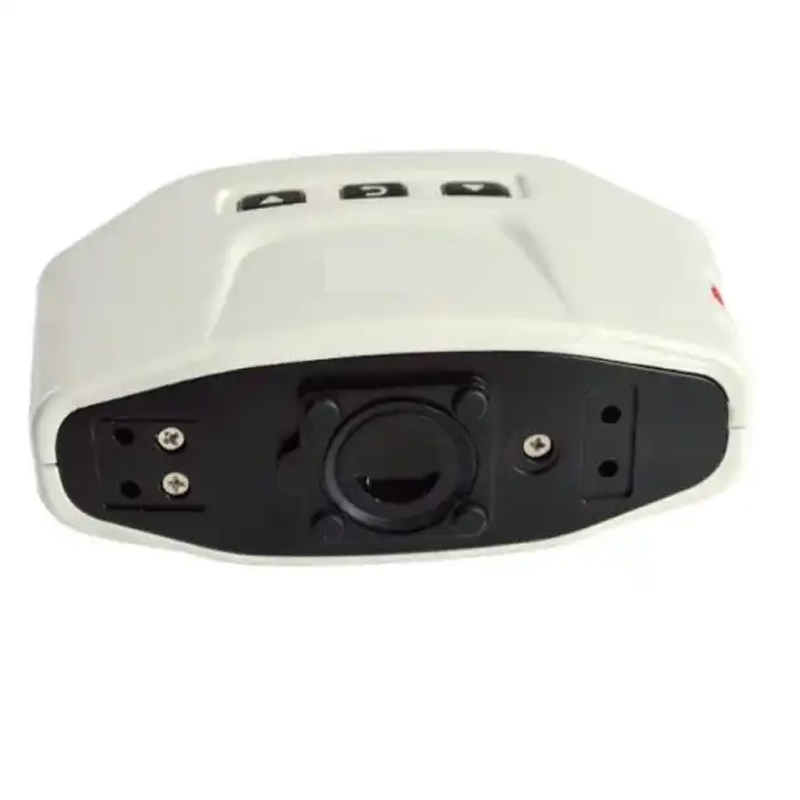

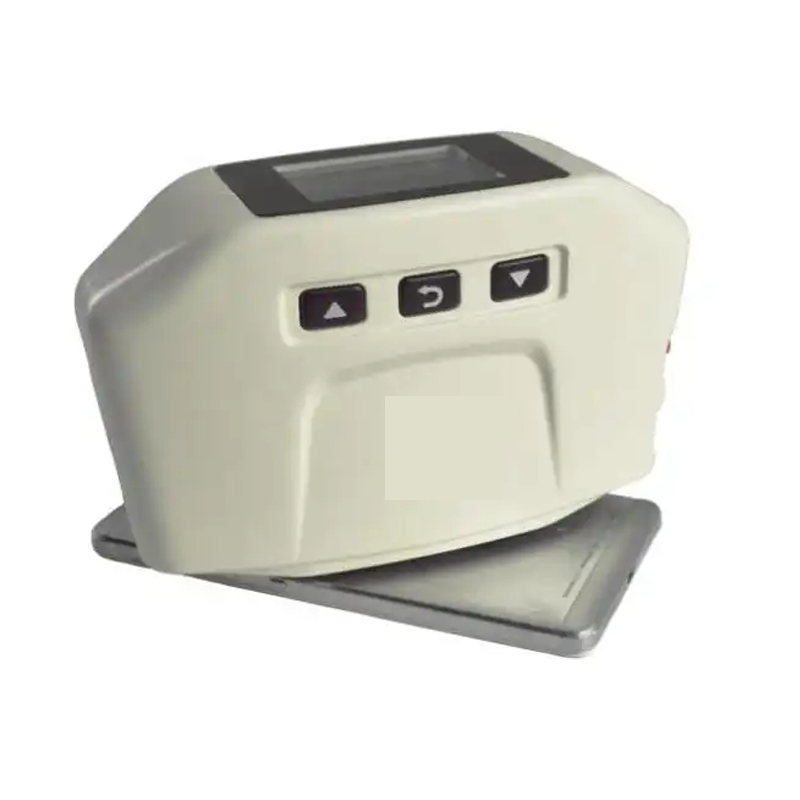

Three angles color spectrophotometer CS-390/392 is specially designed for metallic paint color matching. It could measure the car paint in three different angles (15,45 и 110 degree) to get higher accuracy data for color analysis. CS-392 can also measure graininess level of car paint.

Спектрофотометър
2. Instrument Advantages
It changes color measurement into a simpler work
Fast to get paint formula (only suitable for car paint manufacturer)
Simple interface and easy operation
Instrument is with rubber mat to prevent from sliding during measurement
Small measurement aperture for curve material measurement
Optional blue tooth function to connect with mobile phone and other devices.
Спектрофотометър
Модел CS-390 CS-392
Illumination Angle

45°
Measurement Angles 15°, 45°,110° Color Measurement Angle: 15°, 45°,110°

Graininess Measure Angle: Integrating Sphere Diffuse
Параметри L*a*b, L*C*h, ΔE*ab, ΔE(cmc), ΔE DIN6175, ΔE 2000 Chromaticity Value: L*a*b, L*C*h, ΔE*ab, ΔE(cmc), ΔE DIN6175, ΔE 2000

Graininess Lever (Ж)
Wavelength Range

400-700nm
Wavelength Pitch

10nm
Reflectance Range

0-500%
Резолюция

0.01%
Източник на светлина

LED
Време за измерване < 2с < 6с
Повторяемост dE≤0.05 Max. measure white tile, after calibration

(measured 30 x at 5-second intervals)
Inter-instrument Agreement dE≤0.5 Average measurement of BCRA II color tiles
Measurement Aperture

Diameter 17mm
Viewing Angles

2°/ 10°
Illuminants

А,° С,D50,D65, F2, F7, F11, F12
Light Source Life time

10 години, ≥1 million times
Интерфейс

USB or custom made
Instrument Size

145x58x99mm
Instrument Weight

476ж
Мощност

3.7V/3000mAh rechargeable lithium battery
температура

0-40℃ (32-104 Е)
Storage Temperature

-20-50℃ (-4-122 Е)
