Описание
Digital LCR Meter
Descriptions
AT810 is an intelligent LCR Meter with high -performance processor and color VFD . 100Hz,120Hz,1kHz & 10kHz test frequency with 0.1V,0.3V & 1V signal level,can fully meet the general production requirements.
Digital LCR Meter
Технически параметър
| SPECIFICATIONS | |||||
|
AT810 LCR Digital Meter Rev 5 |
AT811 LCR Digital Meter Rev 2 Promotion |
||||
| Параметри | Л, ° С, Р, |З|, д, Q, q(deg), q(rad) | Л, ° С, Р, |З|, д, Q | |||
| Основна точност | 0.1% | 0.2% | |||
|
Честота |
100Hz, 120Hz, 1kHz, 10kHz | ||||
| Дисплей Обхват | Л: 0.01mH-9999H C: 0.01pF – 9999mF
Р,З: 0.0001W-99.99MW D%: -9999% – 9999% q(deg): -179.99°-179.99° D, 0.0001–9.999 q(rad) :-3.1416 – 3.1416 Q: 0.0001–999.9 |
Л: 0.01mH-9999H C:0.01pF – 9999mF
Р,З: 0.0001W-99.99MW Q:0.0001 – 999.9 D%: -9999% – 9999% д: 0.0001 – 9.999 |
|||
| Display Max | principle parameter: 99999; sub parameter: 99999 | ||||
| Source Resistance | 30У, 100У | ||||
| Обхват | Automatic and manual with 6 ranges | ||||
| Signal Level | 0.1V rms, 0.3V rms, 1V rms | 0.3V rms, 1V rms | |||
| Скорост | 15 пъти/секунда, 5 пъти/секунда, 3 пъти/секунда | 5 пъти/секунда, 11 пъти/секунда | |||
| Еквивалентна схема | In series and parallel | ||||
| Result Display | 3 parameters are displayed together: шоу, DABS, D%, д, Q, |З | and sorting results | шоу, DABS, D% | |||
| Adjustment | Open & short sweep frequency and point frequency | Open and short sweep frequency reset | |||
| Компаратор | 20 groups files record, 5-bin sorting, beep indication | 5-bin sorting, beep indication | |||
| Impact Protection | 1000V/10mF, 600V/80mF or 400V/150mF capacitance under electricity impact protection | ||||

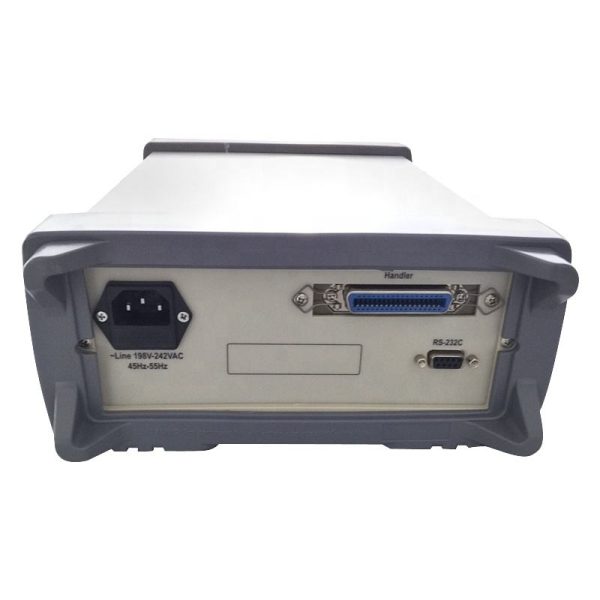

| Интерфейс | RS232C (SCPI programmable language) Handler interface | None | |||
| други | VFD Display, keypad lock and data hold function | LCD Display, button light indication and soft key control | |||
| GENERAL FEATURES | |||||
| Захранване | Волтаж: 198V AC – 250V AC Frequency: 50Hz
Мощност: Max 15VA |
Волтаж: 85V AC – 260V AC Frequency: 50Hz Power: Max 10VA | |||
| Размер | 264мм(ширина)x107mm(Височина)x350mm(Depth) 4килограма | 216мм(ширина)x88mm(Височина)x300mm(Depth) 3килограма | |||
| ORDERING INFORMATION | |||||
| Аксесоари | ATL501: Test cable ATL601: Test fixture
ATL600: Short-circuit slice ATL108 communication cable |
ATL501: Test cable | |||
