Описание

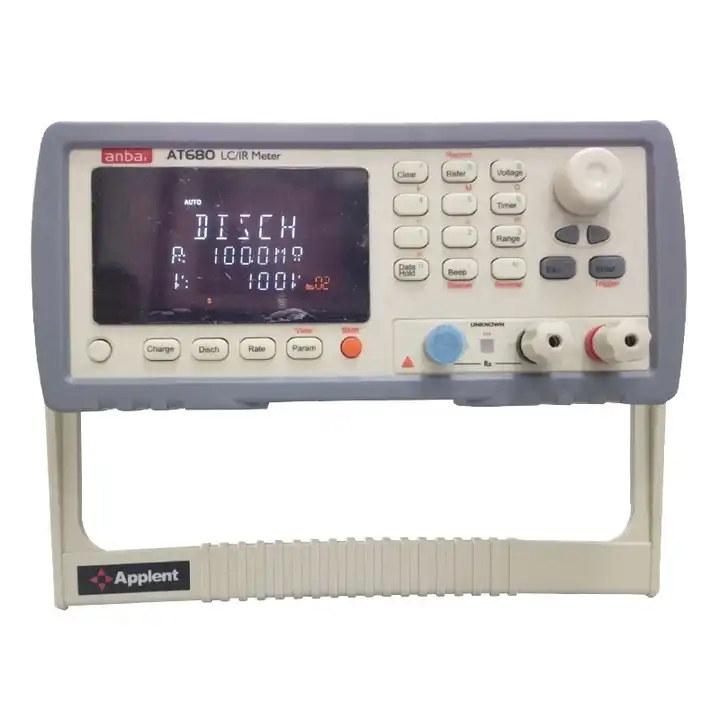

Leakage Current Meter
Under the condition of without using of an external voltage source, AT680 has high-cost performance. Build-in 1V- 650V arbitrary voltage output. Leakage current range 1nA~20mA, max reading 9999, and speed can reach 55 пъти/секунда. It provides the best solution for automatic production.
Leakage Current Meter
| SPECIFICATIONS | ||
|
AT680 |
AT6832 |
|
| Параметри |
Leakage current /IR |
Leakage current |
| Основна точност | 1% | 1% |
| Output Voltage | NC 1V~650VDC | 10V~170VDC |
| Обхват на измерване | аз: 1nA~20mA
Р:1kW~325GW |
аз: 0.1uA~20mA
unaged current: 160 mA |
| Max Reading | 9999 | 9999 |
| Обхват |
Automatic and Manual |
Automatic and Manual |
| Charging Current |
200mA(MAX) |
500Ma(MAX)/1.5А(MAX) |
| Скорост |
55t/s 15t/s 3t/s |
20t/s |
| Result Display |
Покажи, current, съпротива, peak value, and sorting result |
Покажи |
| Charging Timer |
999.9с |
|
| Компаратор |
30 sets record,GD/NG |
1 set record,GD/NG |
| Beep |
GD,NG,OFF setting and volume setting |
None |

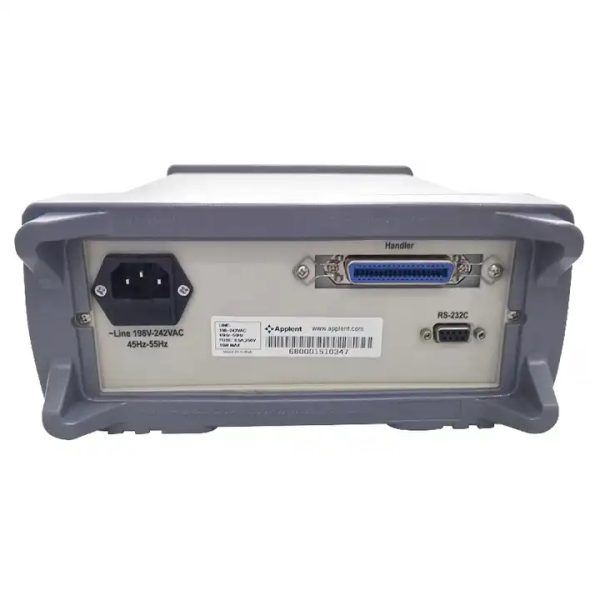

| Интерфейс |
RS-232C and Handler |
RS-232C and Handler |
| GENERAL FEATURES | ||
| Захранване |
Волтаж:198VAC~240VAC Честота:50Hz Power:Max 50VA |
Волтаж:198VAC~240VAC Frequency:50Hz Power:200Вирджиния |
| Размер |
AT680 AT680SE(мм): 264 (ширина)x107(Височина)x350 (Depth) 5килограма |
|
| ORDERING INFORMATION | ||
| Аксесоари |
ATL507: Test clip ATL603: Test clip ATL108: RS232 interface cable |
ATL507: Test clip
ATL108: RS232 interface cable |
