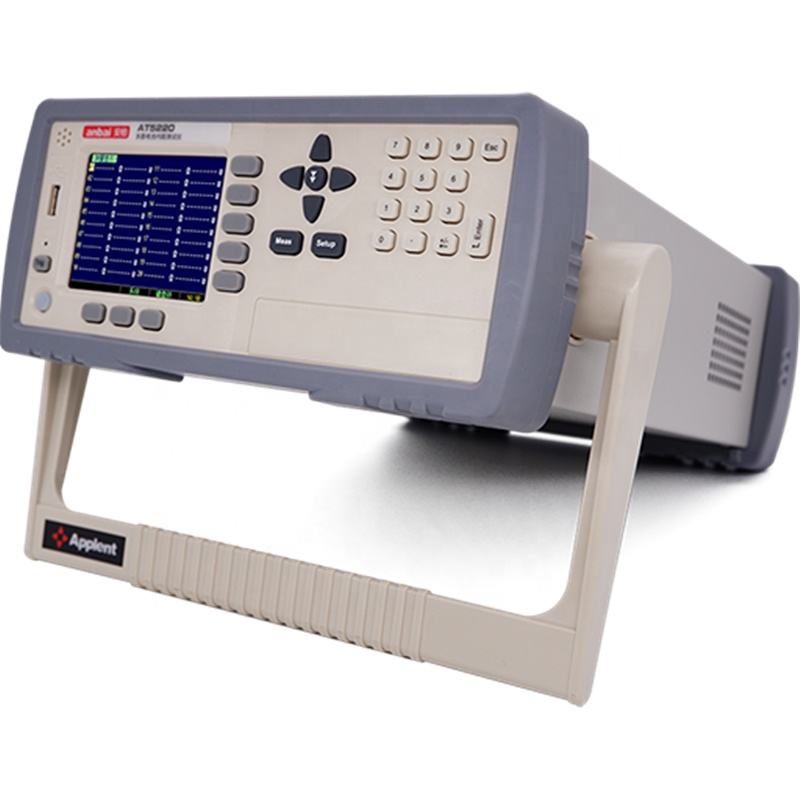

AT5220 Battery Ac Internal Resistance Tester
- Описание
- Разследване
Описание
Battery Internal Resistance Tester
Кратко въведение
AT5210/AT5220 is brand-new design Multi-channel Battery Tester with high precision and high stability. It can quickly complete 10/20 channels battery voltage and internal resistance sorting;It adopts high-performance 32dgt ARM micro processor to control. 3.5 inches TFT true color LCD, Chinese and English display and it is easy to operate. Multi-channel battery tester is widely applied to test contact resistance, battery voltage and battery internal resistance sorting. Brand-new improved sampling circuit can measure any kind of battery. Plus instrument’s professional sorting function and sorting beep setup, applied to automation sorting system to complete full-automatic production line test.
Battery Internal Resistance Tester
Кратко въведение
| SPECIFICATIONS | ||
|
AT5210 Multi-channel Battery Tester |
AT5220 Multi-channel Battery Tester |
|
| Параметри | 10 channels AC Resistance, 10 channels DC Voltage | 20 channels AC Resistance, 20 channels DC Voltage |
| Основна точност | Съпротива :0.5%, Волтаж :0.01% | |
| Обхват на измерване | Съпротива:0.01mΩ~3.000Ω
Волтаж:0.00001V~60.000VDC |
|
| Signal Source | AC 1kHz
measurement current:<150mA |
|
| Обхват | Automatic and manual with 3 ranges | |
| Скорост | Бърз: 10 channels/1s,Среден: 10 channels/2s,Бавен: 10 channels/3s | |
| Result Display | Покажи, DABS, D%, q, sorting results | |
| Display Max | Съпротива:3,0000
Волтаж:60,000 |
|
| Adjustment | Short-circuit reset for all range | |
| Компаратор | RHI/RNG/RLO output, VHI/VNG/VLO output absolute value tolerance,±TOL sorting, percentage tolerance TOL sorting, sequence sorting | |
| Тригер | Вътрешен, ръководство, external and remote | |

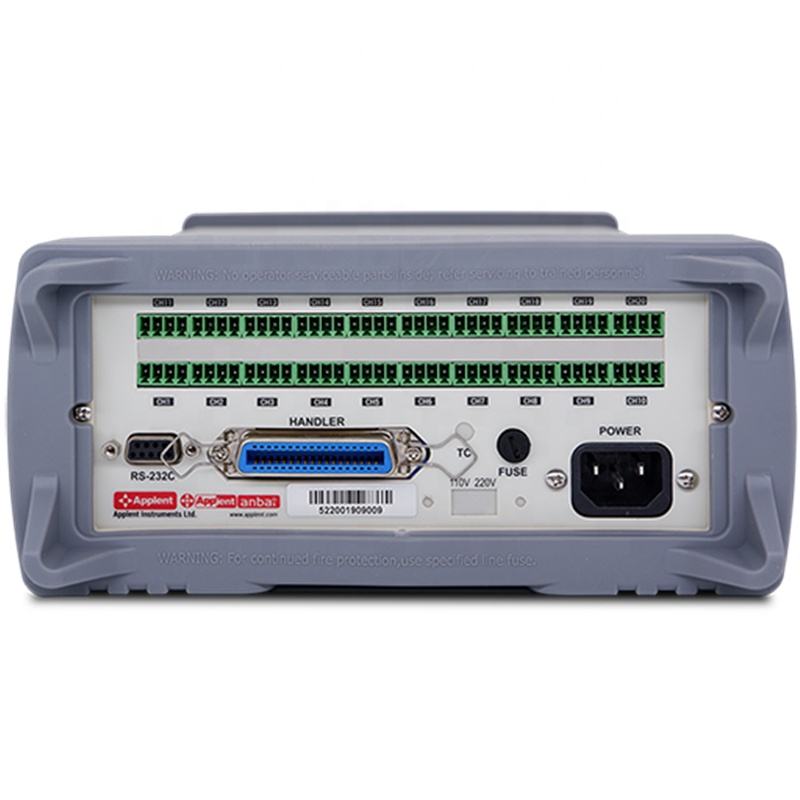

| Интерфейс | RS232C, Handler interface (PLC) | |
| други | Detection of damage test wire, TFT true color LCD display,
keypad lock and data hold function, internal memory and U-disk record |
|
| GENERAL FEATURES | ||
| Захранване | Волтаж: 195V AC – 245V AC. Честота: 50Hz. Мощност: Max 15VA. Не е задължително: 110VAC | |
| Размер & Тегло | 264мм (ширина)x107mm (Височина)x350mm (Depth), 4килограма | |
| ORDERING INFORMATION | ||
| Аксесоари | Test leads
ATL108 RS232 Communication Cable AC power cord |
|
