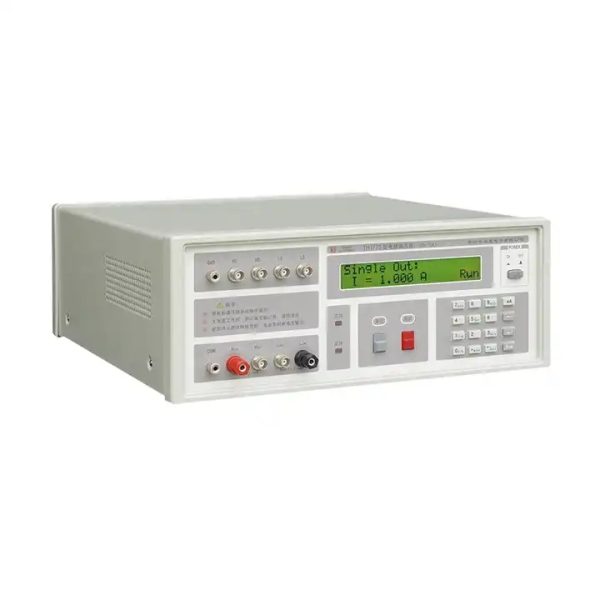

TH1773 Dc Bias Current Source Tester
- وصف
- سؤال
وصف
Dc Bias Current Source Tester
سمات
MPU control
20×2 large character LCD display with backlight
Frequency bandwidth: 50 Hz – 200 كيلو هرتز
0 to 10A current output, max power output 90 دبليو
Directly controllable by TH2816A, TH2817A, TH2818, and TH2819A
Low additional error , wide frequency bandwidth
Auto or manual current sweep output
Single, multi and equal interval current output modes
DC current output with forward or reverse
0 to 99s delay time setup
Long time high current output available
Optional GPIB and RS232C interface
User control setting memory
Strong protective design against damage of LCR meter
Dc Bias Current Source Tester
| Current Range | -10أ – 10أ | |
| Current Resolution | 200 mA Range: 0.1 أماه
2A Range:0.001أ 10A Range:0.01أ |
|
| Frequency Bandwidth | 50Hz-200kHz | |
| Impedance Range | wL < 2kΩ,ل<8/1 (ح) | |
| Current Accuracy | +1% of reading ±3 counts | |
| Output Voltage Range | 0-8الخامس | |
| Additional error | ≥1% | |
| Current Output Mode | Single, multi and Equal intervalcurrent output | |
| Sweep Mode | Manual，Auto(Return sweep available) | |
| Sweep Points | 2-15 points | |
| Delay Time | 0 to 99s | |
| Warm-up Time | 20 دقائق | |
| Working Time | continuous work up tO 24 ساعات | |
| Optional Interface | RS232C (used for LCR meter
control ) |
|
| Operating Temperature and Humidity | 0°C-40°C，≤90%RH | |
| قوة
Requirements |
الجهد االكهربى | 198V-242V |
| تكرار | 47.5Hz-52.5Hz | |
| Power Consumption | ≤200 VA | |
| أبعاد(WxHxD) | 430mmx180mmx460mm | |
| وزن | Approx.16.4kg | |
