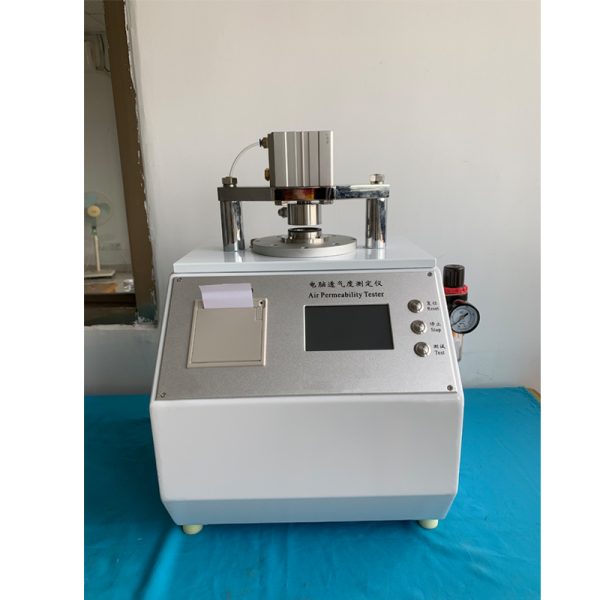

GA-TQ100 Breathability Tester
مقدمة:
The GA-TQ100 computer Breathability tester uses new technology and the most common test methods to test the breathability of paper, cardboard, mica tape, cigarette paper or other flake objects. This instrument is a single chip microcomputer control, fully automated instrument. Its test methods meet the requirements of Schober and Bentsen and Gurley and other methods, and it is an advanced instrument for testing paper breathability in the paper, packaging and cigarette industry in China, and its performance meets international standards.
Working Principle:
Providing the constant pressure difference between two sides of the specimen, the air permeability could be obtained by measuring the air flux through specific area in the certain time.
GA-TQ100 Breathability Tester
سمات:
1.Adopt important USA chip and load sensor to make test accurately.
2.The whole test is fully automatic, سريع ودقيق.
3.The instrument is controlled by micro-computer, with high resolution color touch screen menu interface which is convenient for customers to operate or view test data.
4. Micro-printer, fast and clear printing.
GA-TQ100 Breathability Tester
المعايير:
GB/T458,ISO5636/2,QB/T1667,GB/T22819,GB/T23227,ISO2965,YC/T172,GB/T12655
المعايير الفنية:
|
نطاق القياس
|
0～2500mL/min，0.01~42μm/(Pa•s)，3~3000s(Gurely)
|
|
وحدة
|
μm/(Pa•s)，CU，ml/min，س(Gurely)
|
|
دقة
|
0.01μm/Pa•s，0.06ml/min，0.1س(Gurely)
|
|
Linear Error
|
<1%
|
|
منطقة القياس
|
10cm²，6.42cm² (Selectable)
|
|
Pressure Difference
|
0.05kPa～6kPa
|
|
الأوزان
|
30كلغ
|
|
أبعاد
|
33*34*49سم
|
