GA-T541 Paper Internal Bond Tester

GA-T541 Internal Bond Tester is designed for measuring the internal fiber strength (Z-direction tensile strength) of paperboard. It widely used in the white paper board, box paper, kraft paper, white cardboard, parchment, bond and other internal bond strength testing. The bonding strength is an important index of cardboard printing performance.

ISO15754,TAPPI T541,GB/T 31110-2014

1.High precision and repeatability

Using high precision load cell transmission force value, American computer chip high-speed sampling control, stepper motor precision ball screw drive, coupled with reasonable design precision machining, to ensure the equipment is of high accuracy and repeatability.

From the compression and pasting time of adhesive tape to the z-direction rapid stretching (stripping).The automatic completion is not only convenient but also reduces human error, greatly improving the test accuracy.

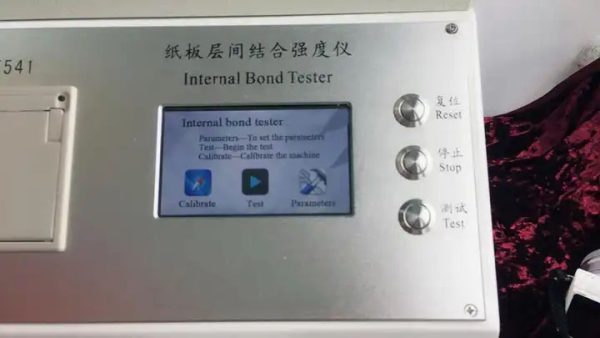

High resolution color touch screen display in English, friendly man-machine interface operation. The test data statistical handling function, miniature printer output can also be connected to PC. Results when connected to a computer, in addition to the automatic memory storage, can also show that the tensile curves and save.

Stretch (peel off) test speed adhesion pressure compression time and other changeable preset, convenient for school scientific research units and other departments to conduct scientific experiments and analysis.

The upper and lower pressure heads are easy to be removed, which makes it easy to leave residues on the adhesive tape during the cleaning experiment and to connect the standard sensor for force value calibration.

This instrument is a new generation of products developed and produced by our company according to the latest international standards.
