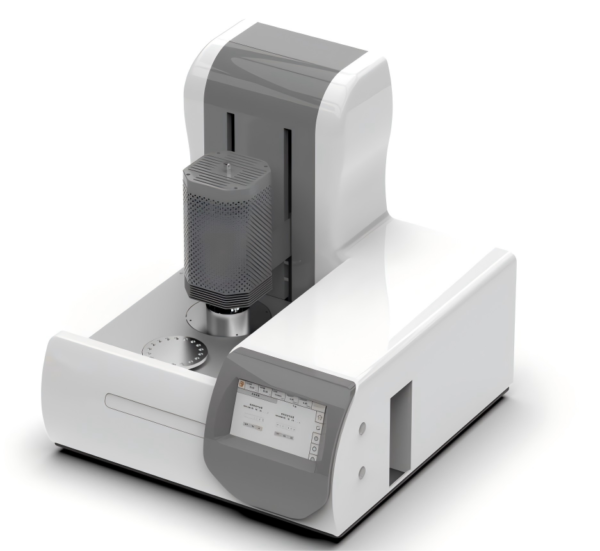

GA-S501 1500℃ STA Simultaneous Thermal Analyzer（Includes TGA+DSC function）

وصف

GA-S501 1500℃ STA Simultaneous Thermal Analyzer

Operating Principle

The operating principle of a simultaneous thermal analyzer (STA) is to measure the change in mass of a substance as a function of temperature or time, using programmed temperature control. Its main components include a heating furnace, a balance, a temperature controller, and a recording system.

A simultaneous thermal analyzer operates based on the temperature changes of a sample and the processes of heat conduction, absorption, and radiation. It controls the temperature of the furnace to heat, cool, and maintain a constant temperature for the sample, then monitors and records the sample’s temperature changes and the corresponding physicochemical properties.

GA-S501 1500℃ STA Simultaneous Thermal Analyzer

التطبيقات

A simultaneous thermal analyzer can simultaneously measure both TG and DSC information, covering a wide range of measurement areas, including thermal stability, redox analysis, decomposition behavior, corrosion studies, decomposition kinetics, melting/crystallization, solid-state phase transitions, crystallinity, and glass transition.

Simultaneous thermal analyzers are widely used in research and development, process optimization, and quality control in various fields, including plastics, ممحاة, الطلاءات, المستحضرات الصيدلانية, catalysts, inorganic materials, metallic materials, and composite materials.

Application area

Widely used in research and development, process optimization, and quality monitoring in various fields such as plastics, ممحاة, الطلاءات, المستحضرات الصيدلانية, catalysts, inorganic materials, metal materials, and composite materials.

Plastic materials Metallic materials Drugs Paint

GA-S501 1500℃ STA Simultaneous Thermal Analyzer

Structural Advantages

1. The furnace heating system utilizes double-wound precious metal platinum-rhodium alloy wire to reduce interference and enhance high-temperature resistance.

2. The tray sensor is precision-crafted from precious metal alloy wire, offering high-temperature, oxidation, and corrosion resistance.

3. The power supply and heat dissipation circuits are separated from the main unit to minimize the impact of heat and vibration on the microthermobalance.

4. The main unit utilizes an insulated heating furnace to minimize the thermal impact on the chassis and microthermobalance.

5. The furnace utilizes double insulation for improved linearity; the furnace features automatic lift for rapid cooling; and an exhaust outlet allows for integration with infrared sensors.

Controller and Software Advantages:

1. Utilizes an imported ARM processor for faster sampling and processing speeds.

2. Four-channel sampling AD acquires TG and temperature signals.

3. Heating control utilizes a PID algorithm for precise control. Multi-stage heating and constant temperature control are possible.

4. USB bidirectional communication between the software and the instrument enables complete remote operation. Instrument parameters can be set and stopped via the computer software. 5. 7-inch full-color 24-bit touchscreen for an enhanced human-machine interface. TG calibration can be performed directly on the touchscreen.

GA-S501 1500℃ STA Simultaneous Thermal Analyzer

Compliant with industry standards:

أستم د 3386, أستم د 696, ASTM E831-2019, ASTM E831-06, ASTM E831-2014, من 51045-3-2009, جيجابايت/ت 33047.3-2021, جيجابايت/ت 4498.2-2017, جيجابايت/ت 32868-2016, جيجابايت/ت 31984-2015, جيجابايت/ت 14837.2-2014, جيجابايت/ت 29189-2012, إلخ.

المعلمة الفنية

نطاق درجة الحرارة	Room temperature -1500°C（Equipped platinum heating wire）
Temperature resolution	0.001درجة مئوية
تقلب درجات الحرارة	±0.01°C
Heating/cooling rate	0.1~100°C/min; -0.1~-40°C/min
Temperature control method	PID control, heating, cooling, and constant temperature
Weighing system measurement range	0.001mg~3g, expandable to 50g
دقة	1μg
حساسية	0.1μg
DSC range	±1000mW
DSC sensitivity	0.1μW
Atmosphere control	Built-in two-way gas flowmeter, including switching between two gas lines and flow rate control
برمجة	Intelligent software automatically records TG curves for data processing, with TG/DTG, كتلة, and percentage coordinates freely switchable; software features automatic scaling and extension based on the graph display
Hot-hold time	Any settings are available; standard configuration ≤600 minutes
The operating software comes with a copyright certificate, and data testing frequencies can be selected in real time, 2س, 5س, or 10s.
The furnace features both automatic and manual lift modes, enabling rapid temperature reduction; from 1000°C to 50°C in ≤ 20 دقائق.
An external water cooling device isolates heat from drifting the weighing system; the temperature range is -10°C to 60°C.
