GA-7004 Electromagnetic Type Vertical Horizontal Vibration Tester
- وصف
- سؤال
وصف
GA-7004 Electromagnetic Type Vertical Horizontal Vibration Tester
1.مقدمة
1.نظرة عامة على المنتج: electromagnetic vibration test series are widely applicable to national defense, الفضاء الجوي, communications, electronics and automobiles, home appliances and other industries.This type of equipment is used for detecting early faults, simulating actual condition assessment and structural strength test. The product has a wide range of applications, wide applicable surface, and remarkable and reliable test results.
2.humanized operation and control, using professional control software control, make the equipment work more stable, more reliable
3.the whole machine is made of compound industrial materials, precision processing, super quiet
4.the table panel is made of magnesium aluminum alloy material, which can completely isolate the magnetic field interference and effectively prevent magnetization of the measured object
5.sweep frequency and fixed frequency operation mode, adapt to different industry testing requirements
6.high precision frequency output, four-point synchronous vibration, even vibration table
7.strong anti-magnetic and anti-interference ability
8.has the safe and reliable protection function
9.the platform body adopts high efficiency and low noise fan to cool down, ensuring a long time of continuous operation
GA-7004 Electromagnetic Type Vertical Horizontal Vibration Tester
1.مقدمة
1.نظرة عامة على المنتج: electromagnetic vibration test series are widely applicable to national defense, الفضاء الجوي, communications, electronics and automobiles, home appliances and other industries.This type of equipment is used for detecting early faults, simulating actual condition assessment and structural strength test. The product has a wide range of applications, wide applicable surface, and remarkable and reliable test results.
GA-7004 Electromagnetic Type Vertical Horizontal Vibration Tester
المعلمات التقنية
| Frequency range (هرتز) | 5~400 | Sweep frequency range (هرتز | 5~400 |
| Maximum acceleration (m/s2) | 170 | Maximum test load (كلغ) | 40 |
| Maximum no-load displacement (mmp-p) | 0~5 | Cooling mode | تبريد الهواء |
| Operating temperature requirement (درجه مئوية) | 0~+40 | Operating humidity requirements (%ر.س) | 0-90, لا التكثيف |
| Power requirements | single-phase AC 220V/50Hz ±10% | System consumed power (كيلو فولت أمبير | 2.2 |
| الوزن الإجمالي (كلغ) | 150 | Table size W.D.H. (مم) | 450×450×43 |
| Table size W.D.H. (مم) | 1300×570×450 | Vibration waveform | sine wave |
| Vibration axial direction | رَأسِيّ + horizontal | Excitation mode | electromagnetic excitation |

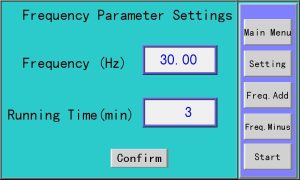

Computer menu
