GA-42 High Frequency Spark Tester
- وصف
- سؤال
وصف

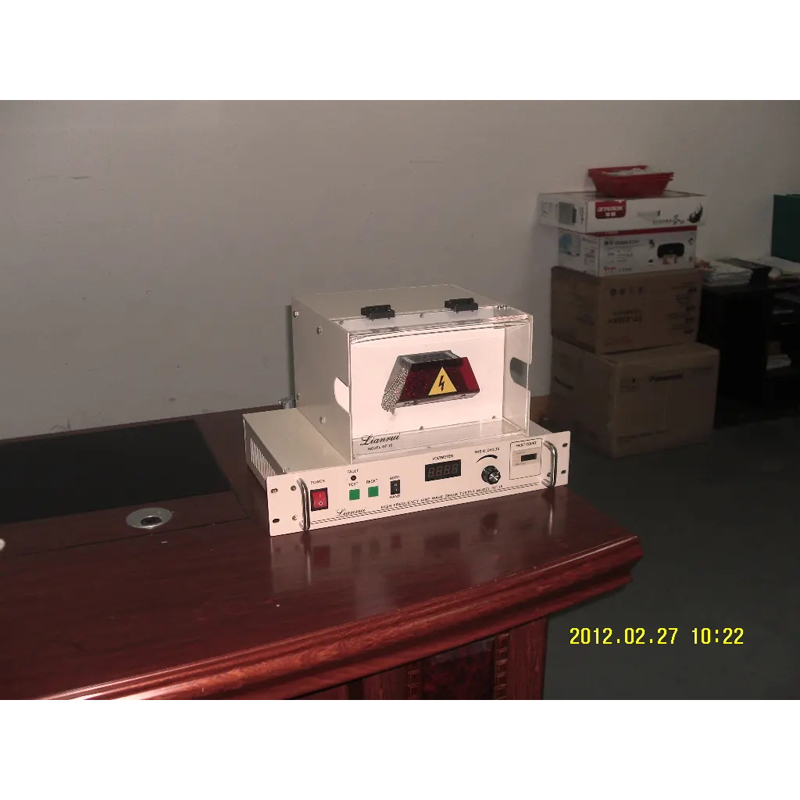

Spark Tester
A.Function:
1.Fast recovery time after fault (0.1 second).
2.Occupies short space in line and with improvement factor of 50 compared to
3.traditional CT power frequency electrode.
4.Voltage Display: 0.0~15.0KV digit, 14.2mm LED display, دقة +/- 1% of reading
5.Output Control: Front Panel Reset in Manual Mode. Closure time is selectable
6.0.2s/2s/5s in main board by jumper JP, Form C relay contacts (250VAC/5A) for all
7.wire faults detected.
8.Limits the fault current without damaging the test equipment.
9.Short exposure time to corona does not degrade nor damage good insulation.
10.Distinguishes all wire faults and detects bare wire.
11.Safety Switch interlock.

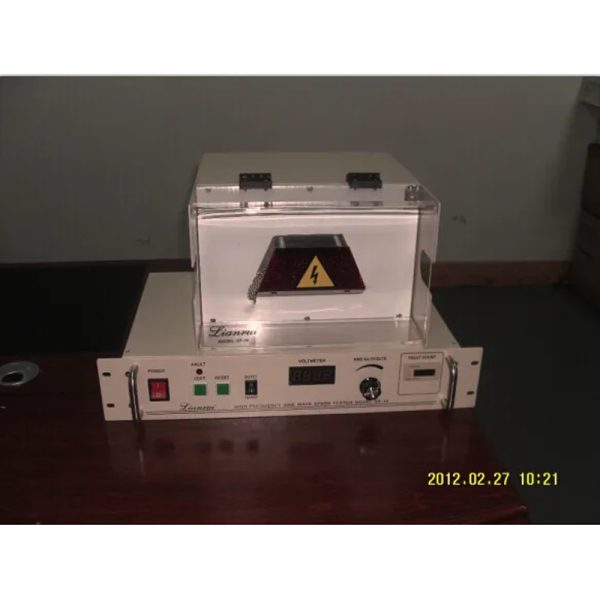

Spark Tester
| Product Name | Good quanlity High Frequency Spark Tester |
| Output Voltage | 0.0~15.0KV R.M.S. |
| Test Voltage | 1.0~15.0KV R.M.S. |
| Cable Diameter | 0~25mm |
| Maximum Load Current | 4mA Resistive,40mA Capacitive |
| Output Frequency | 2.5-3.5KHznormal |
| Electrode lengths | Bead Chain 120mm |
| Fault Indication | Indicating lamp,Counting by Digital Counter |
| Output Control | 1 Form C relay Contacts(220VAC/5A)for all wire faults and bare wire
faults detected |
| Input Control | SP1, SP2 input interlock control |
| Operating Model | Extruder Continuous Application |
| Power Source | 175~264 Volts, 180فرجينيا, Single phase, 50/60 هرتز |
| Operation Temperature | +4~45°C |
| Operation Humidity | <90%ر.س |
| Signal Cable Lengths | 5م |
| وزن |
Control Unit =5 kgs, Electrode = 8.5 kgs |
| Dimension Controller | 360(ل)x485(دبليو)x90(ح) مم |
| Gauge Head | 330(ل)x200(دبليو)x390(ح) |
| Line Speed |
2000 M/min. maximum* |
*Follow UL 44, any point on the wire being traveled for not less than a total of 18 positive or negative crests of the supplied voltage.
