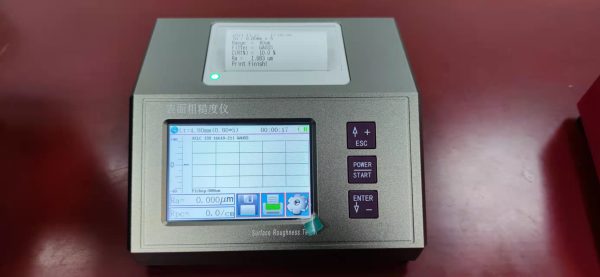

GA-1603 Surface Roughness Machine
APPLICATION
This instrument is suitable for surface roughness measuring on hard surface, widely used for measuring metal and non-metal parts, a variety of machining parts in the field of machinery processing manufacturing, اختبار, commodity inspection and other quality control departments. especially suitable for on-site measuring of large work pieces and production lines, as well as for mobile measurement by the inspection room, measurement and commodity inspection department, the measuring won’t cause damage to the work piece.
GA-1603 Surface Roughness Machine
FEATURES
- Mechatronics design, embedded printer can directly print out measurement results and graphics
- External drive unit, allows more flexible measurement in side, upward, and other orientation
- 320μm large measuring range (enhanced type up to 640μm, خياري)
- 5 inches color graphic LCD touch screen with backlight provide high brightness and wide viewing angle
- Easy button and touch screen dual operation
- The display information is rich, intuitive, and displays all parameters and graphics
- Compatible with ISO, من, ANSI, JIS and many national standards
- Built-in lithium-ion rechargeable battery, charging control circuit, high capacity, no memory effect
- include charge indicator, charging hint
- Continuous working time is more than 50 ساعات
- Large internal memory: 100 groups of original data and waveform can be stored
- Real-time clock setting and display, convenient for data recording and storage.
- With automatic sleep, automatic shutdown and other power-saving functions
- Reliable circuit and software design to prevent the motor stuck
GA-1603 Surface Roughness Machine
STDANDARD PACKAGE
Main unit, Groove sensor (non warranty parts) , 40mm Height adapter, Calibration specimen, Specimen holder, Extension cable, Touch pen, Power Charger & كابل USB, Instrument case.
GA-1603 Surface Roughness Machine
TECHNICAL DATA
| Measuring rang
|
The Z axis (رَأسِيّ) | 640ميكرومتر (-320μm~+320μm) / 25200μin (-12600μin~+12600μin) | |
| The X axis (Transverse) | 17.5mm（0.69 inch） | ||
| دقة | the Z axis (رَأسِيّ) | 0.002μm/±20μm | 0.004μm/±40μm |
| 0.008μm/±80μm | 0.020μm/±160μm | ||
| 0.040μm/±160μm | |||
| عرض | المعلمة
|
Ra Rz, Rq Rt, Rc Rp Rv R3z R3y Rz(هو) Ry Rs Rsk Rku Rmax Rsm Rmr（Tp） RPc Rk Rpk Rvk Mr1 Mr2 | |
| Assessed Graphic | Rmr curve, Roughness curve, Primary Profile, Filter waveform | ||
| معيار | ISO4287,ANSI b46.1,DIN4768,JISb601 | ||
| Filter | RC,PC-RC,Gauss,D-P | ||
| Cut off length(lr) | 0.25,0.8,2.5مم | ||
| Assessment length（ln） | Ln= lr×n n=1~5 | ||
| المستشعر | Measuring principle | Differential Inductance | |
| Stylus tip | Diamond, 90°/ cone angle/5μm/2μm | ||
| Force | Measuring force<4مليون, Skid force<400مليون | ||
| Guide parts | hard alloy, skid radius of curvature: 40مم | ||
| Measuring speed | lr=0.25, Vt=0.135mm/s lr=0.8, Vt=0. 5mm/s | ||
| lr=2. 5, Vt=1mm/s Return Vt=1mm/s | |||
| Accurate to | 0.001ميكرومتر | ||
| Tolerance | ±(5nm+0.1A) A=Ra standard value of precise specimen | ||
| التكرار | ≤3% | ||
| Residual Profile | ≤ 0.010μm | ||
| مزود الطاقة | Built-in Lithium ion battery 3600mAh | ||
| Main unit dimension | 155×145×58mm | ||
| Drive unit dimension | 23×27×115mm | ||
| Zoom of height adapter | 40مم | ||
| وزن | Around 1000g | ||
| working Environment | درجة حرارة: – 20℃ ~ 40℃ Humidity: < 90% ر.س | ||
| Store and Transportation | درجة حرارة: – 20℃ ~ 40℃ Humidity: < 90% ر.س | ||
| Standard sensor | Groove sensor | ||
| Optional accessory | Magnetic stand, height gauge and related adapter, curved sensor, small hole sensor, deep groove sensor, very small hole sensor, Extending Rod, Right Angle Rod, mini printer, 200mm platform, 300mm marble platform, برمجة, mobile APP | ||
| نطاق القياس | |||
| And the number
|
Display range | ||
| Ra,Rq | 0.005μm ~ 64μm | ||
| Rz,R3z,Ry,Rt,Rp,Rm | 0.02μm ~ 640μm | ||
| Sk | 0 ~ 100% | ||
| س,Sm | 0.02~1000μm | ||
| Tp（Rmr） | 0 ~ 100% | ||
