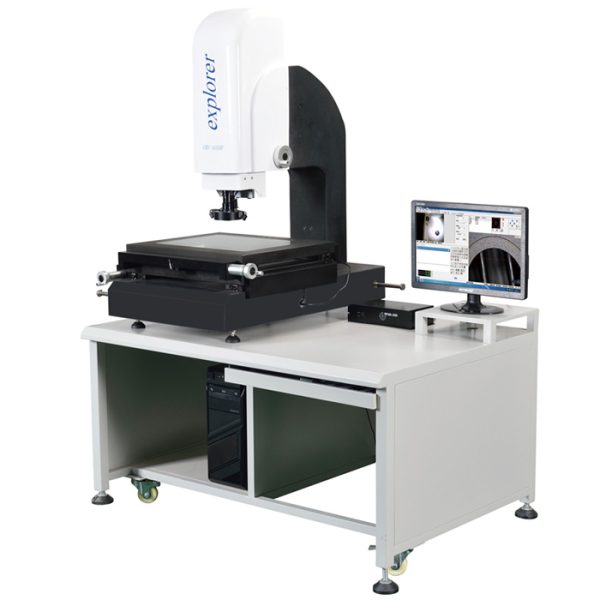

VMS-2010F/3020F/4030F/5040F optiese meetmasjien
- Beskrywing
- Ondersoek
Beskrywing
VMS-2010F/3020F/4030F/5040F optiese meetmasjien
Gebruik
A high configuration,low price measuring equipment,based on two-dimensional coordinate measurement,including points,lines,circles,arcs,rectangles and other geometric elements and parts of the
lengte,angle,contour shape,surface shape,etc.Also do three-dimensional auxiliary measurement,such as the height of the steps,hole depth,surface flatness.and so on.Widly used in machinery,elektronies,
plastiek,hardware and other industries.
VMS-2010F/3020F/4030F/5040F optiese meetmasjien
Produk Kenmerke
1.High precision and high strength machine:00 marmer basis/regop kolom/werktafel,hoë presisie en goeie stabiliteit.
2.XYZ three axis imported precision V type guide rail/imported optic axis drive system,lang dienslewe,goeie stabiliteit.
3.High precision grating ruler 0.5 μm.
4.WM deurlopende zoom optiese lens,verskillende rame,verskillende vergroting,without zoom correction.
5.HD Japanese SONY CCD camera,hoë kwaliteit meetskerm.
6.Hulpfokusmeting,optiese meet hoogte en platheid,en kan toegerus word met die Britse RENISHAW kontaksonde.
7.Surface light,LED profiel lig,Coaxial light.Choose match programmable three ring eight area light.
8.The laser pointer indicates the position of measuring,rapid positioning and conenient measurement.
9.Can match foot switch,easy to operate at any place.
10.Provide a wide range of models:such as VMS-2010,VMS-3020,VMS-4030,VMS-5040.
VMS-2010F/3020F/4030F/5040F optiese meetmasjien
Technical Specification
| Model | VMS-2010F | VMS-3020F | VMS-4030F | VMS-5040F | |
| Worktable | Metal table’s size(mm) | 350*220 | 450*350 | 550*450 | 700*600 |
| Glass table’s size(mm) | 230*130 | 330*230 | 430*330 | 530*430 | |
| Three axis travel Travel(mm) | 200*100 | 300*200 | 400*300 | 500*400 | |
| Gewig(kg) | 170 | 260 | 300 | 500 | |
| Dimensie(L)*(W)*(H) | 500*700*1100 | 600*750*1100 | 700*900*1150 | 850*1050*1200 | |
| Measuring System
(Standaard bykomstighede) |
Kamera :SONY1 / 3″ Kleur CCD-kamera | ||||
| Lens magnification :0.7~4.5X WD:95mm | |||||
| Total magnification:30~230X Object view:7~1.1mm | |||||
| Double Cross Line Generator
Data Resolution:0.001mm |
|||||
| Z-axis lifting travel (mm):150mm
The indication error of X,Y-axis ≤(3+L/200)µm (L be regarded as measured length, eenhede: mm) |
|||||
| Lighting: Surface light and transmission light are used LED, brightness adjustable Power:220/110V(Ac),50HZ 30W | |||||
VMS-2010F/3020F/4030F/5040F optiese meetmasjien
Software introduce
WM – ME 3 d measurement software main functions are as follows:
